FLS Select
The FLS-LED Series delivers high-efficacy, optimized performance for flood and area lighting applications. Selectable wattage and CCT switches provide on-site flexibility. A standard integrated photocell can be enabled or disabled as needed, with optional 3-pin or 7-pin receptacles available with shorting cap or twist-lock photocell. Ideal for parking lots, building facades, perimeter lighting, car dealerships, and many more.
Features:
- Fully Selectable SKUs:
- All models are wattage adjustable, lumen selectable, CCT selectable (3000K/4000K/5000K).
- Additional 2200K option available with Dark Sky Friendly configuration.
- Smart Controls:
- Fixture comes pre installed with DC photocell which can be turned ON/OFF as needed.
- Optional 3-pin or 7-pin receptacle with shorting cap, and Twist-lock Photocell available.
- Additional motion sensor option available.

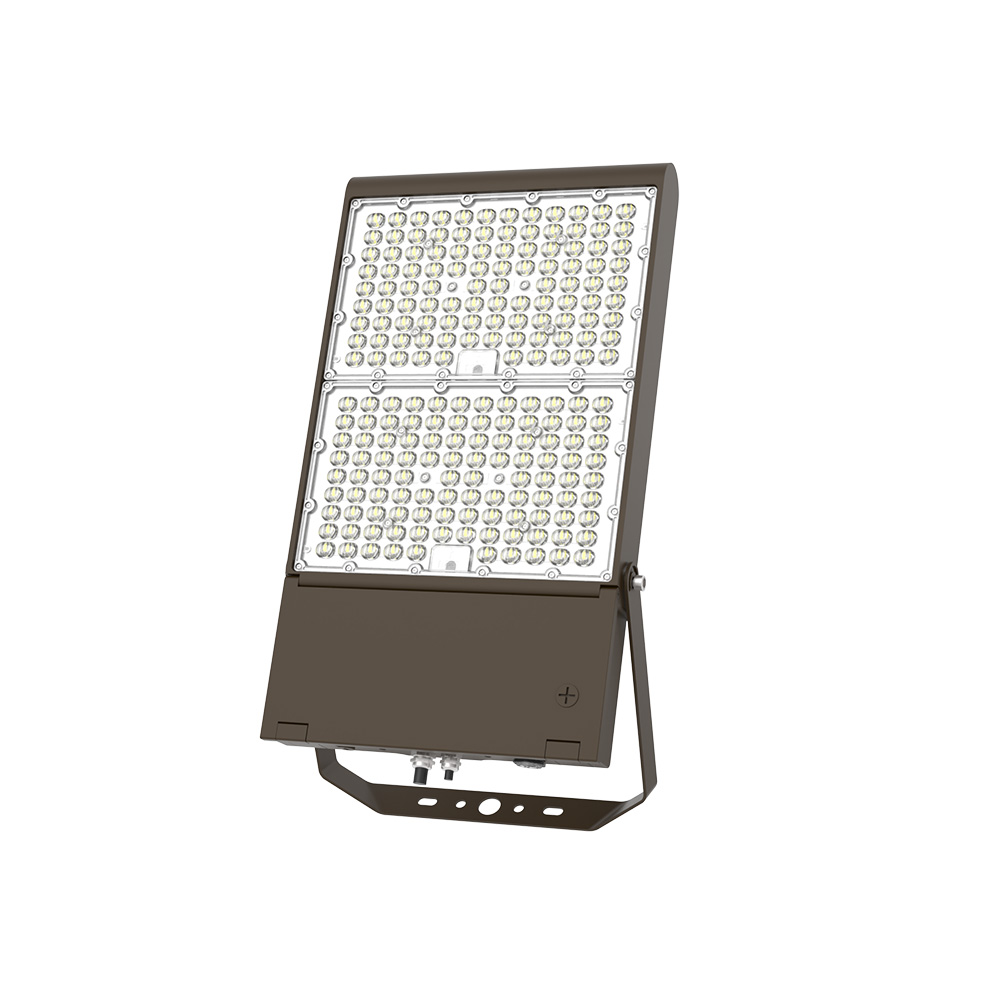

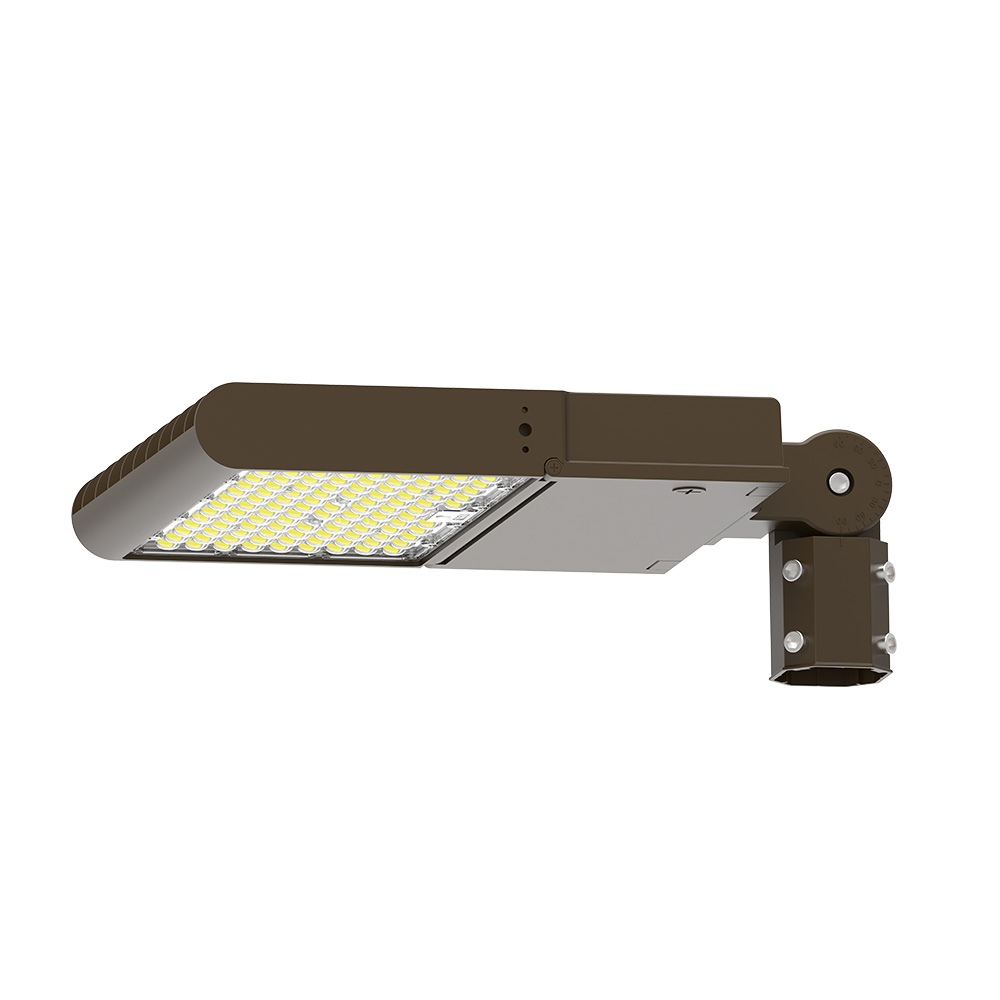

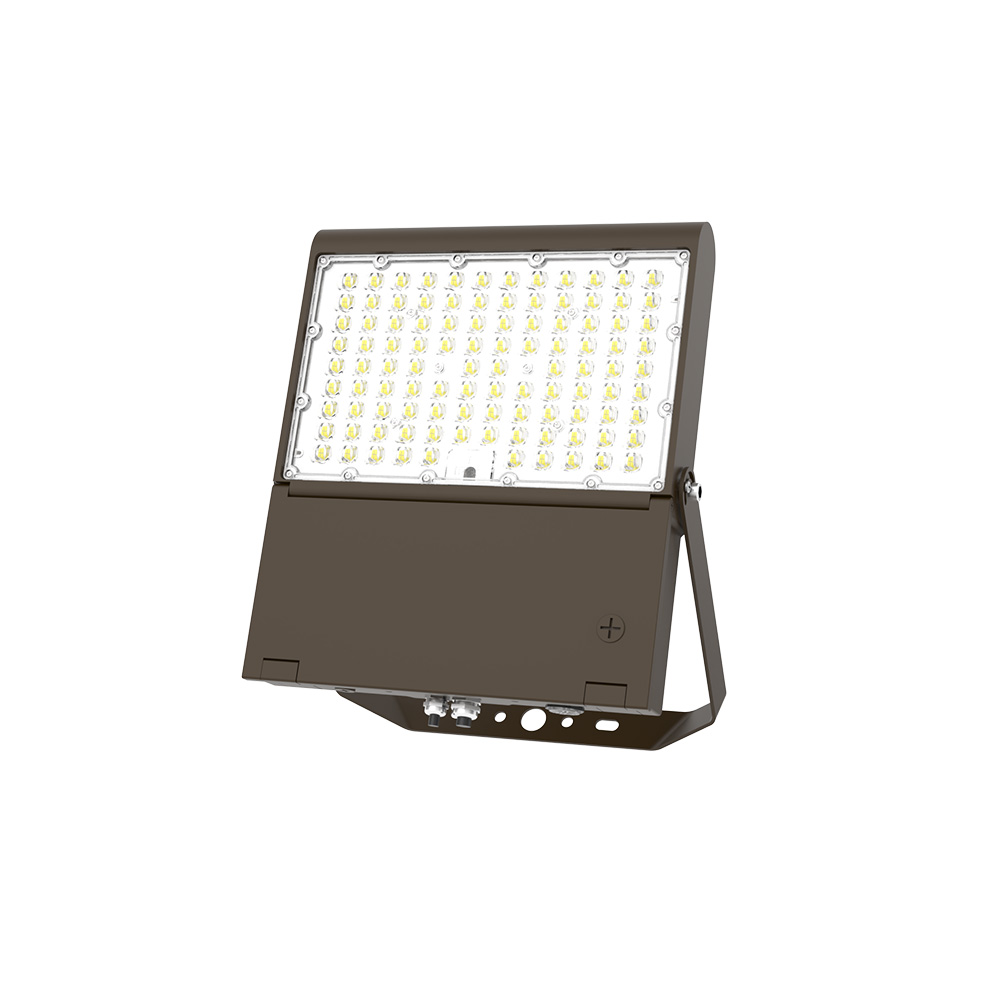

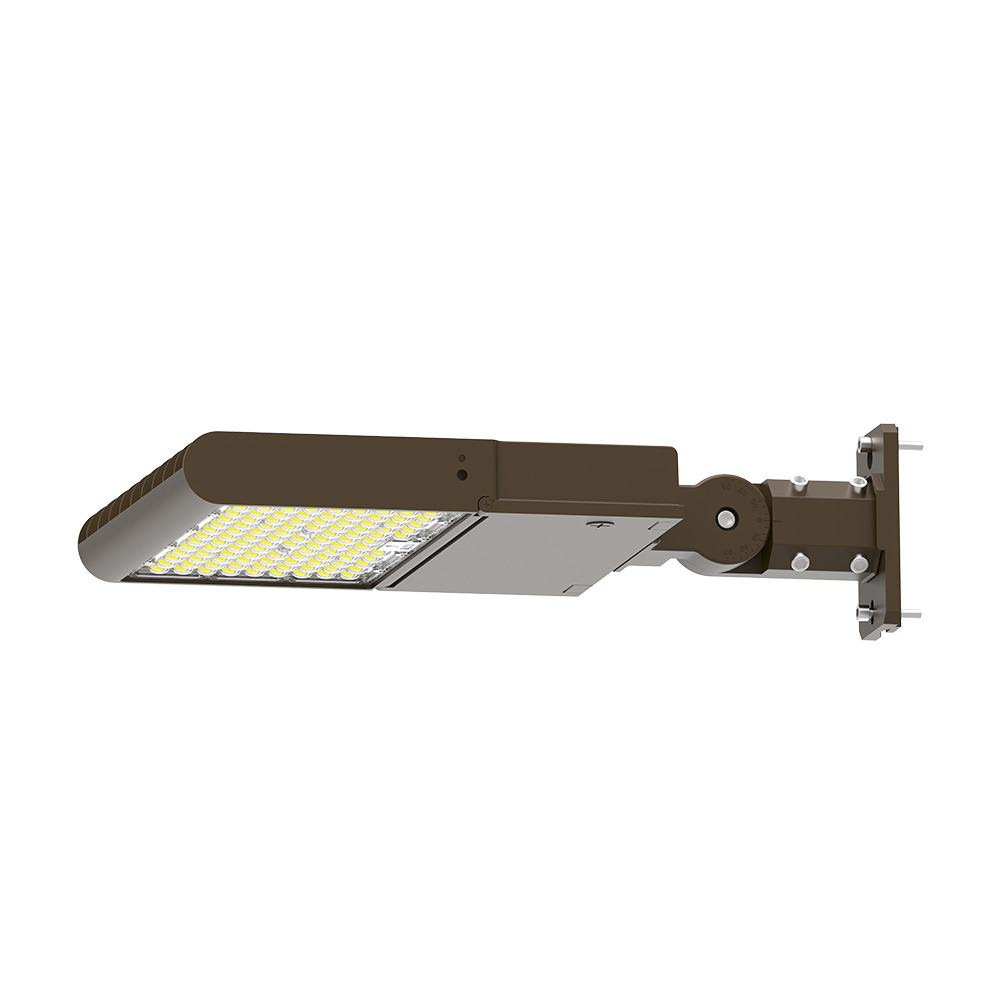

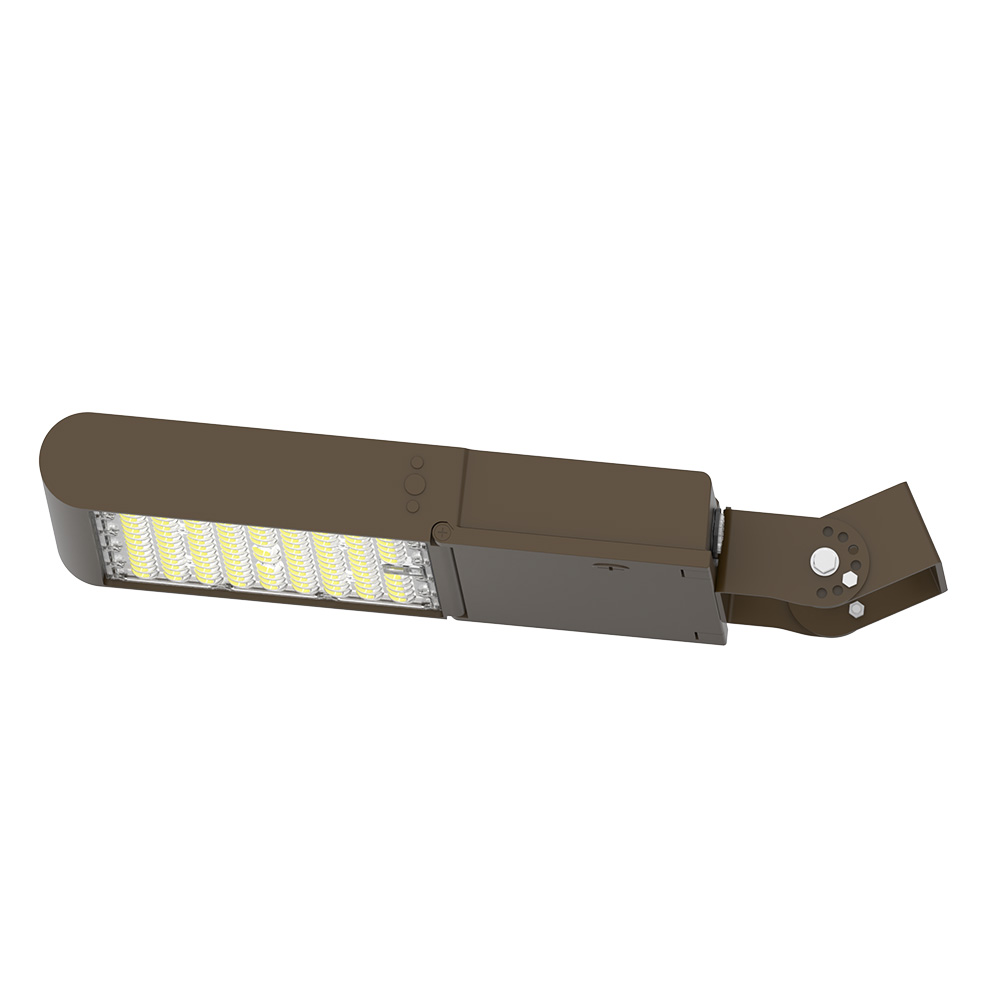

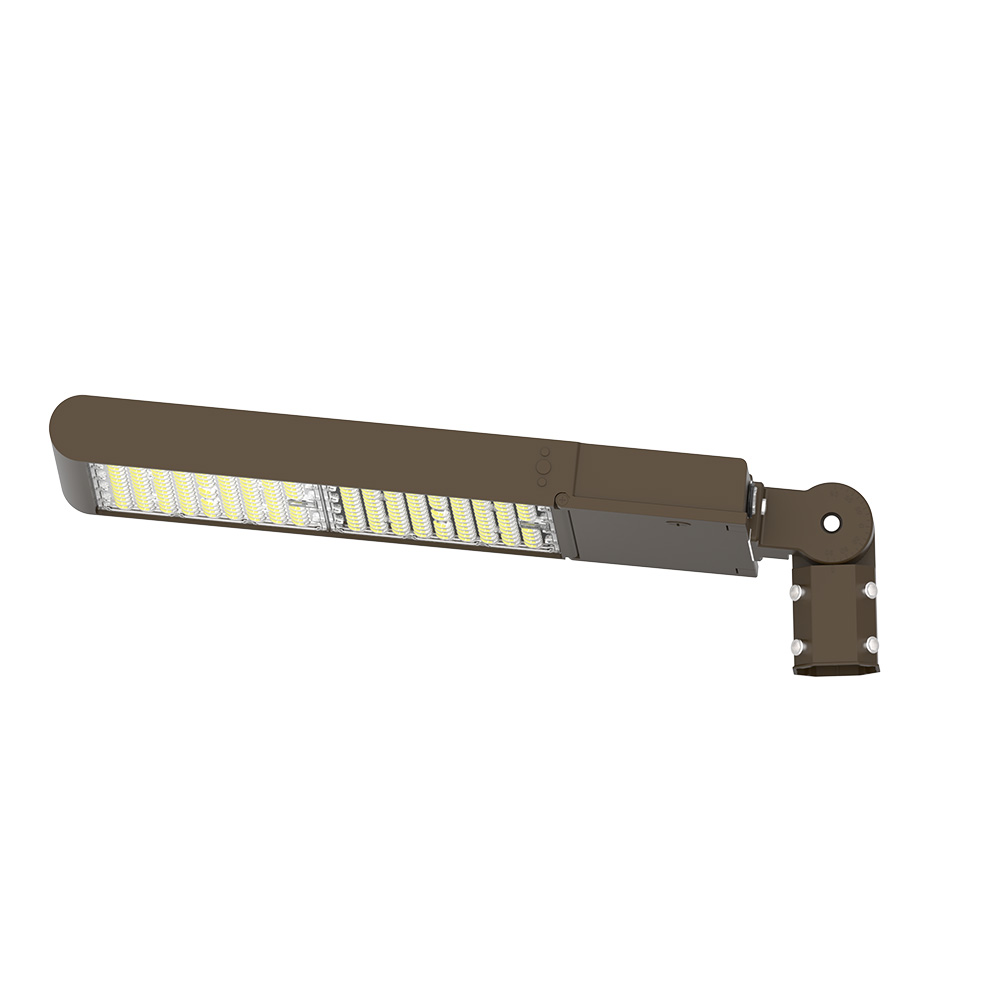

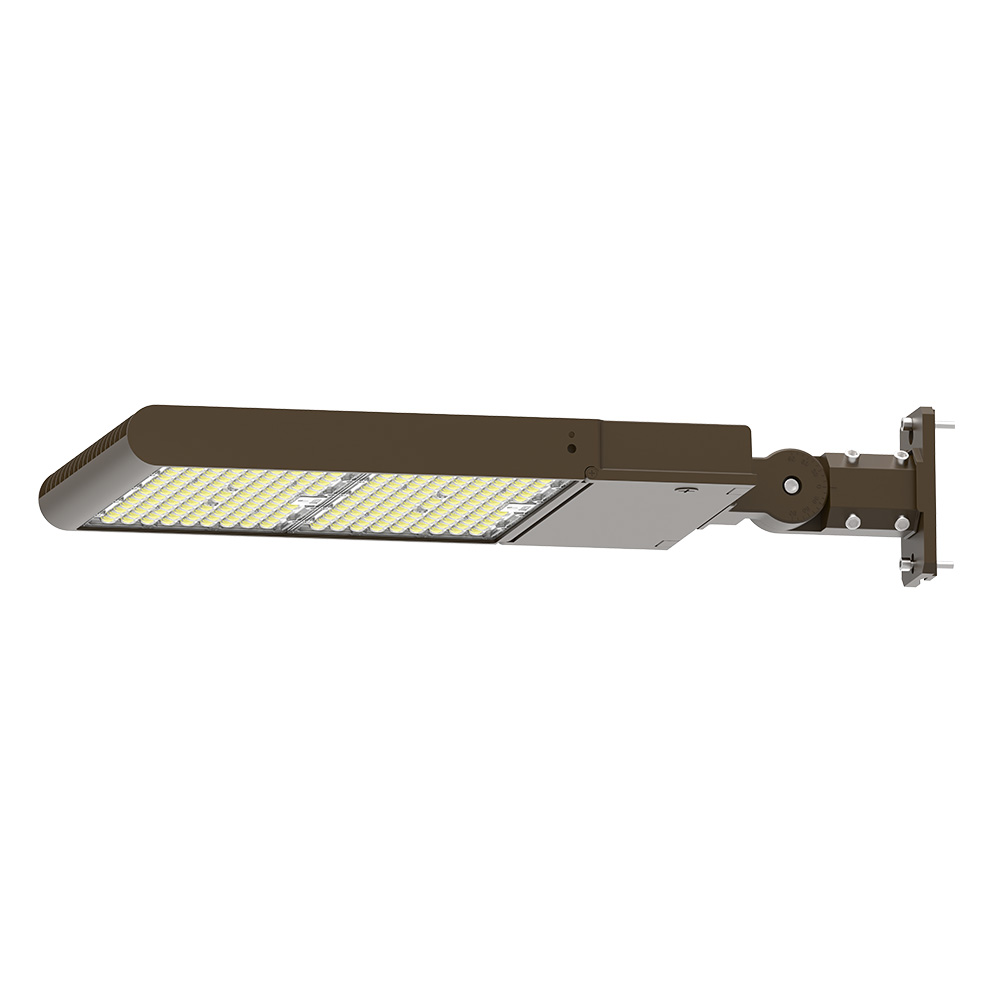

- Universal Mounting – Yoke, Trunnion, Slipfit, Slipfit with Wall Adapter, Mounting Arm for Round or Square Poles.
- Die-cast aluminum housing with a polycarbonate lens.
- Easy to Install.
- Certifications
- DLC Premium, cULus, NEMA4X.
Specifications
| Light Output (lm) | 16300/13000/8150 |
| Efficacy | 163 lm/W |
| CCT | CCT Selectable - 3000K/ 4000K/ 5000K, 2200K (Optional) |
| Beam Distribution | Type III, Type V (NEMA 7x7) |
| Replaces up to | 250W MH |
| LED Lifetime (L80) | >100 000 hours |
| CRI | 74 |
| BUG Rating | B3-U0-G3 |
| Wattage (W) | 100/80/50 |
| Voltage | 120-277V, 480V |
| Surge Protection | 6kV Internal (with driver), 10kV External (added to every fixture) as per IEC/EN61000-4-5 |
| Power Factor | ≥0.9 |
| THD | ≤15% |
| Cord | Input: 3 ft (STW, 600V ) Dimming: 3 ft (SJTW, 300V) |
| Housing | Die Cast Aluminum |
| Lens | Polycarbonate lens with Type III/Type V distribution |
| Finish | Bronze (Standard), Custom Finish |
| Paint Specs | Weather and Corrosion resistant polyester powder coat finish with 800 hours salt spray rating as per ASTM B117 |
| Ambient Operating Temperature | -40℃ to 60℃ (-40°F to 140°F) |

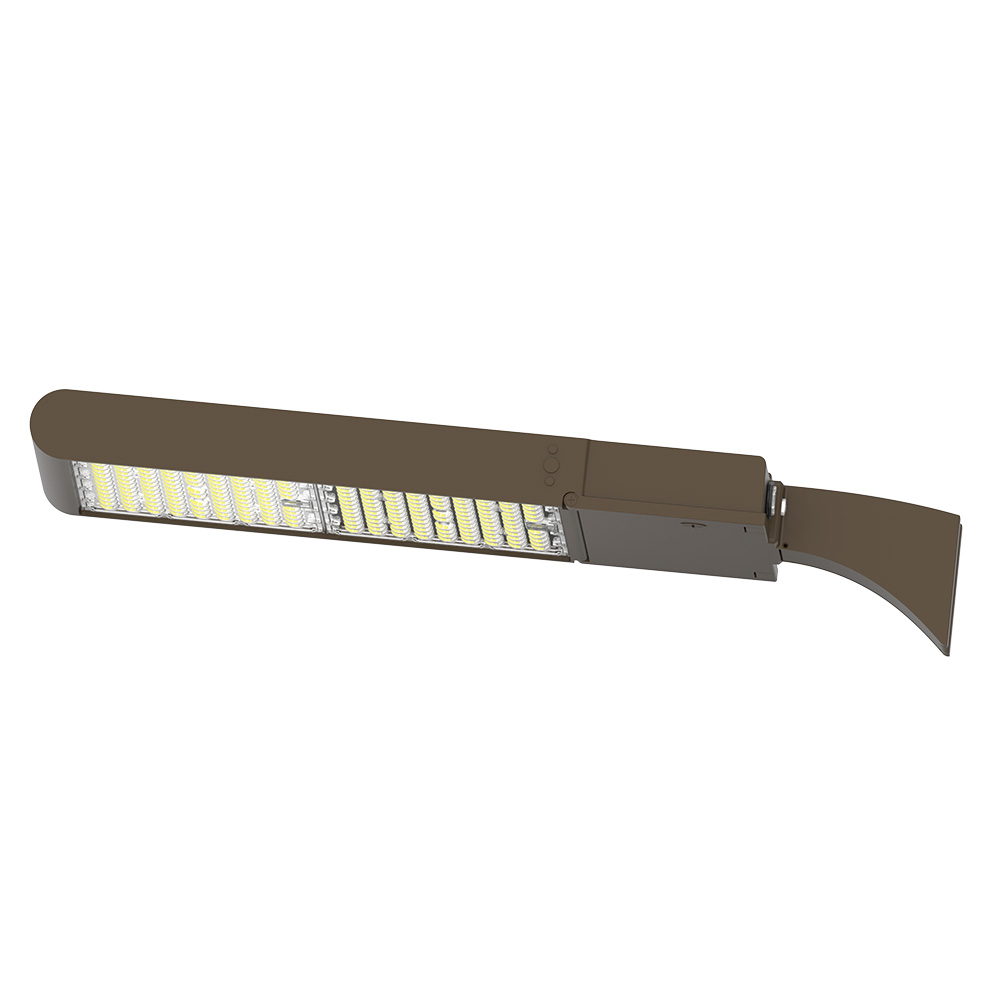

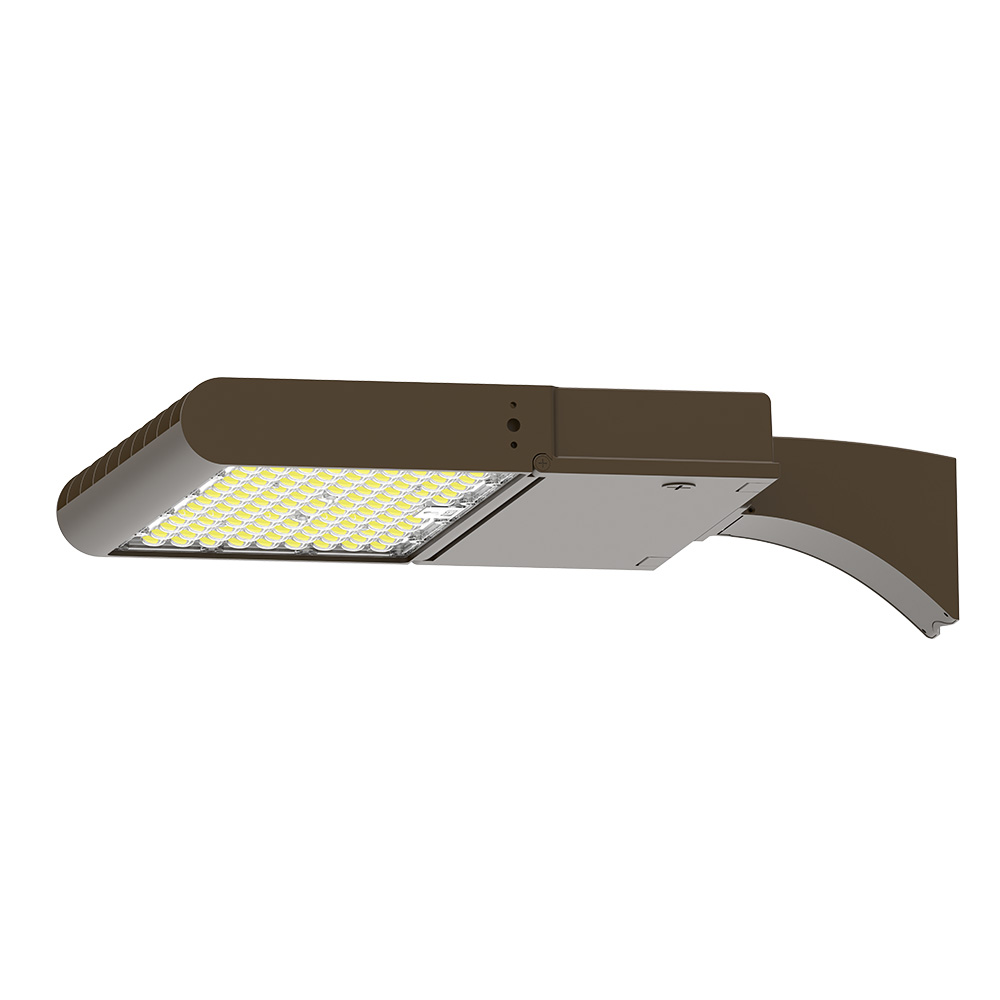

| Mounting Accessories | Yoke, Trunnion, Slip Fitter, Slip Fitter with Wall Adapter, Direct Mount for Round or Square Poles |
| Certifications | cULus Listed for Canada and USA, per UL 1598 & CSA C22.2 No. 250.0, IP66, NEMA 4X, DLC Premium |
| Dimming | 0-10V (10% to 100% Dimming, Dim to Off) |
| Sensor | Integral Photocell (Standard) DHFS - Dimming High Frequency Motion Sensor (Factory installed) |
