LFY-LED
Linear vaporproof LED fixture, designed for versatility and durability in demanding environments. With adjustable lumen and color temperature settings and wide voltage range ensures compatibility to suit application in industrial and commercial spaces. The fixture combines rugged construction and special design features to achieve contractor friendly installation. Factory installed motion sensor and Bluetooth controls are optional.
Features:

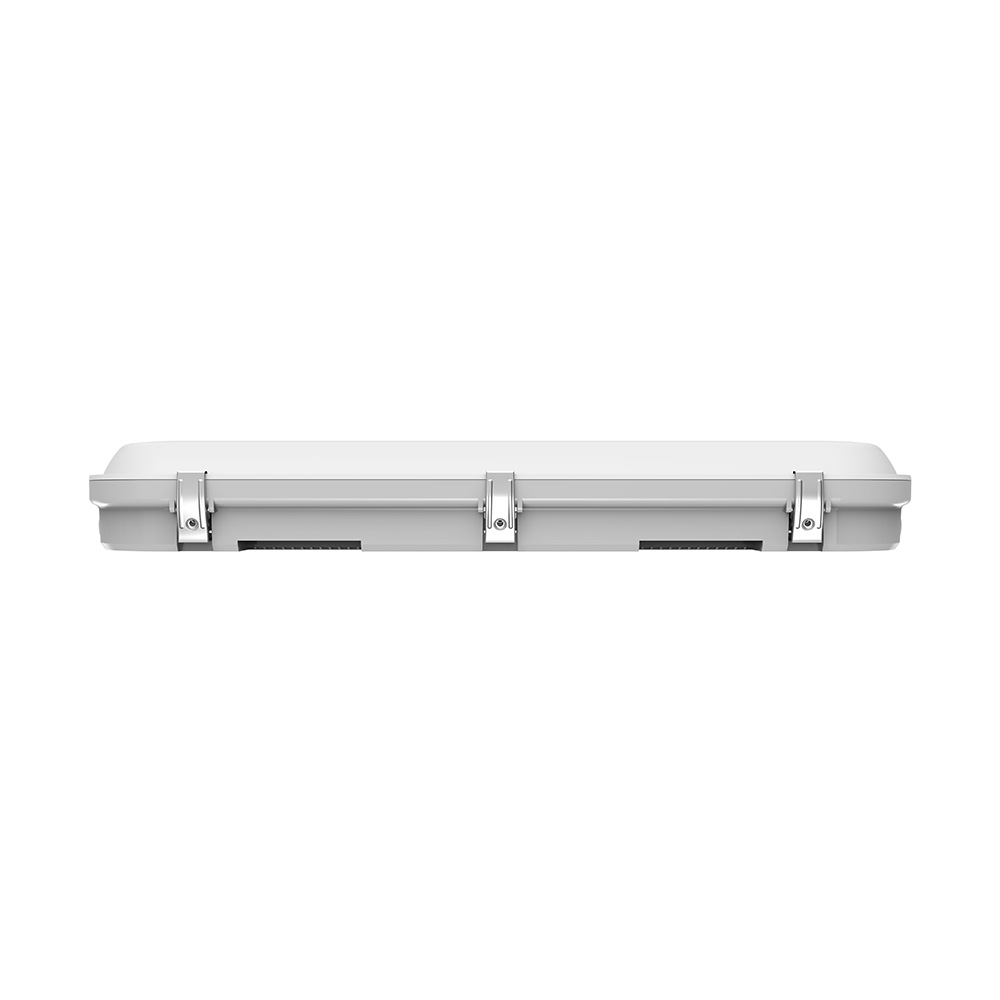

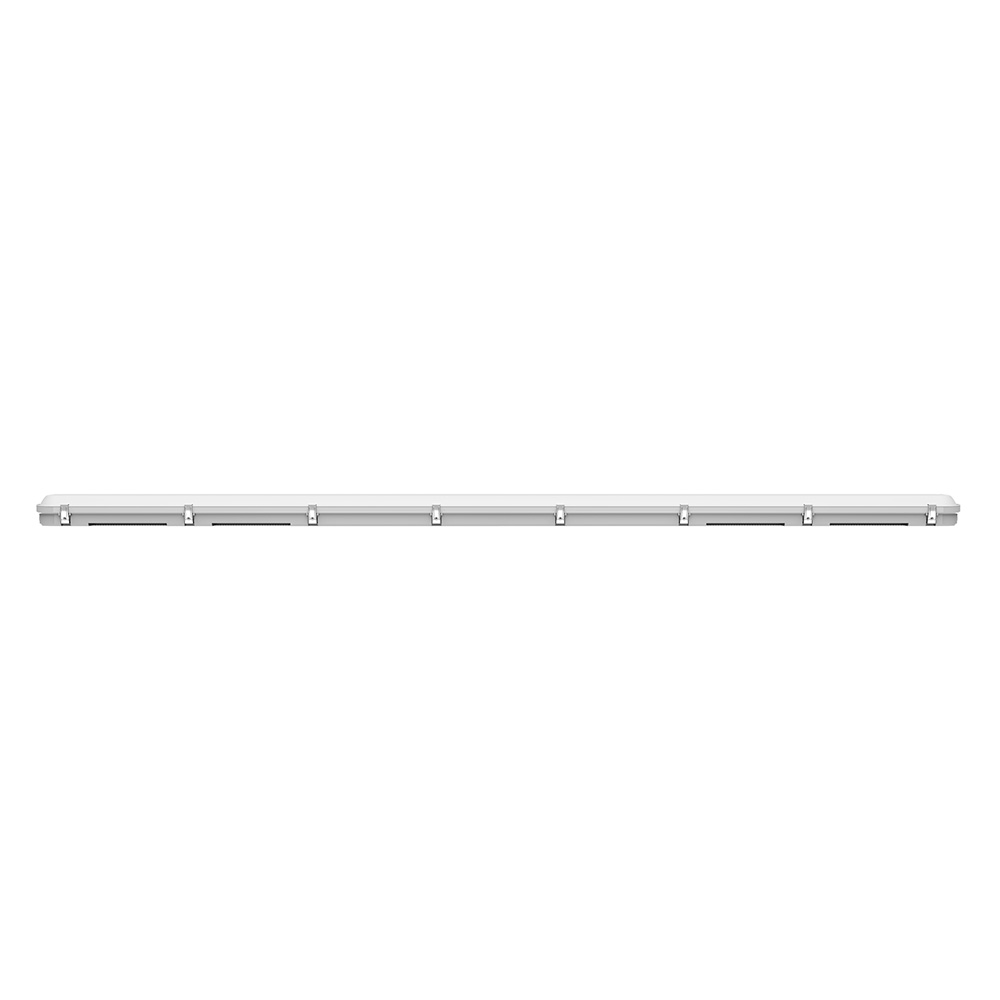

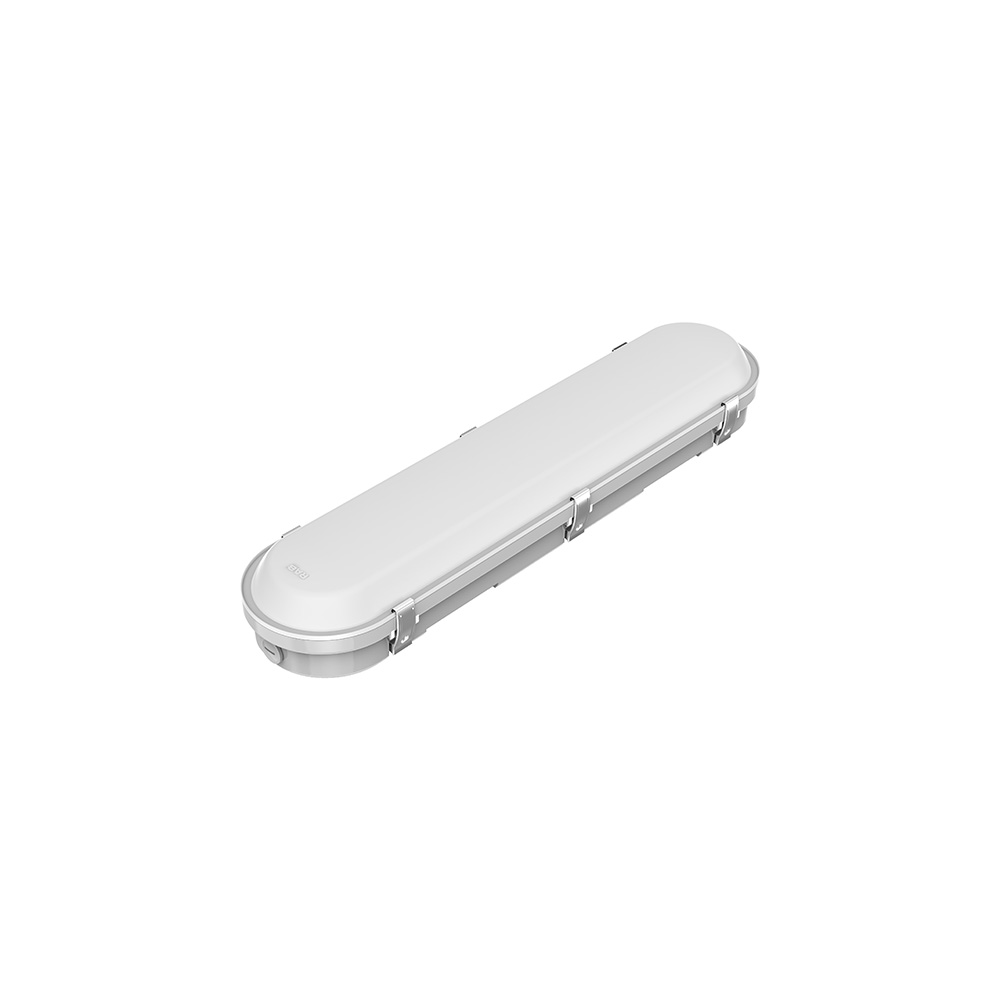

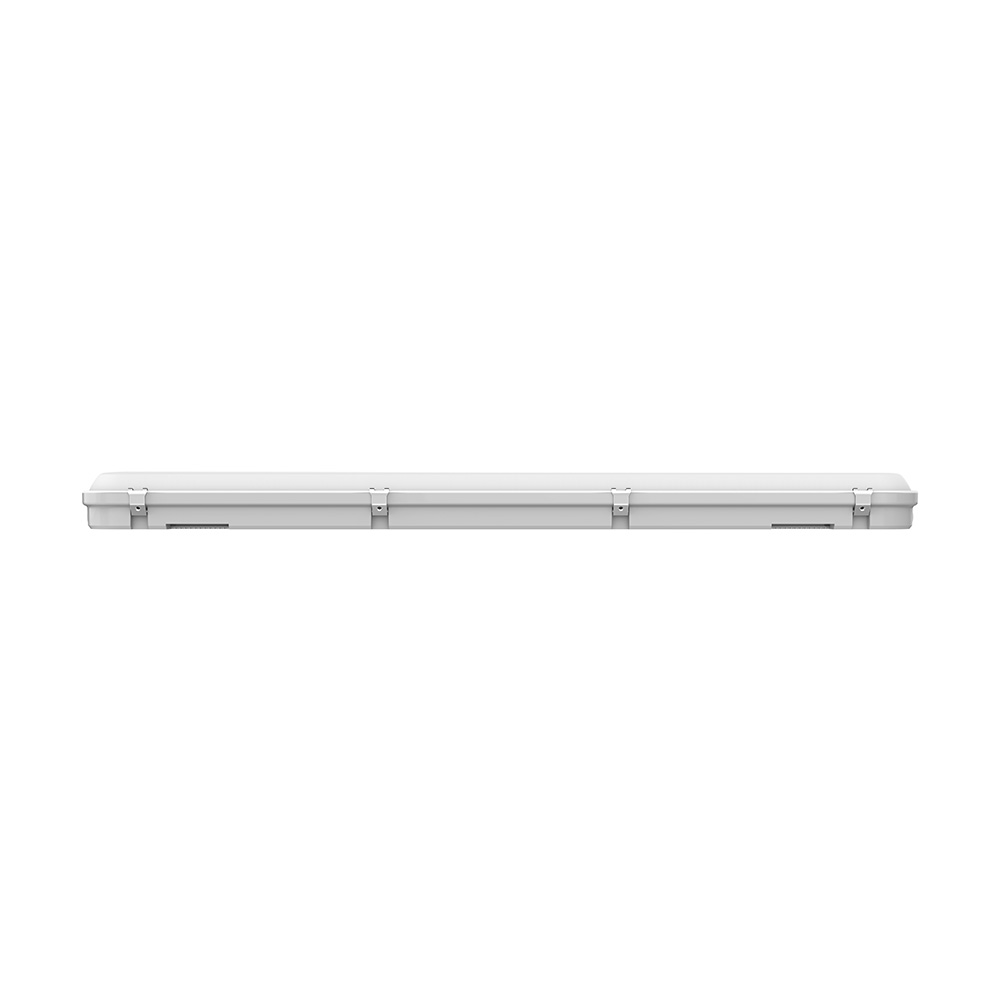

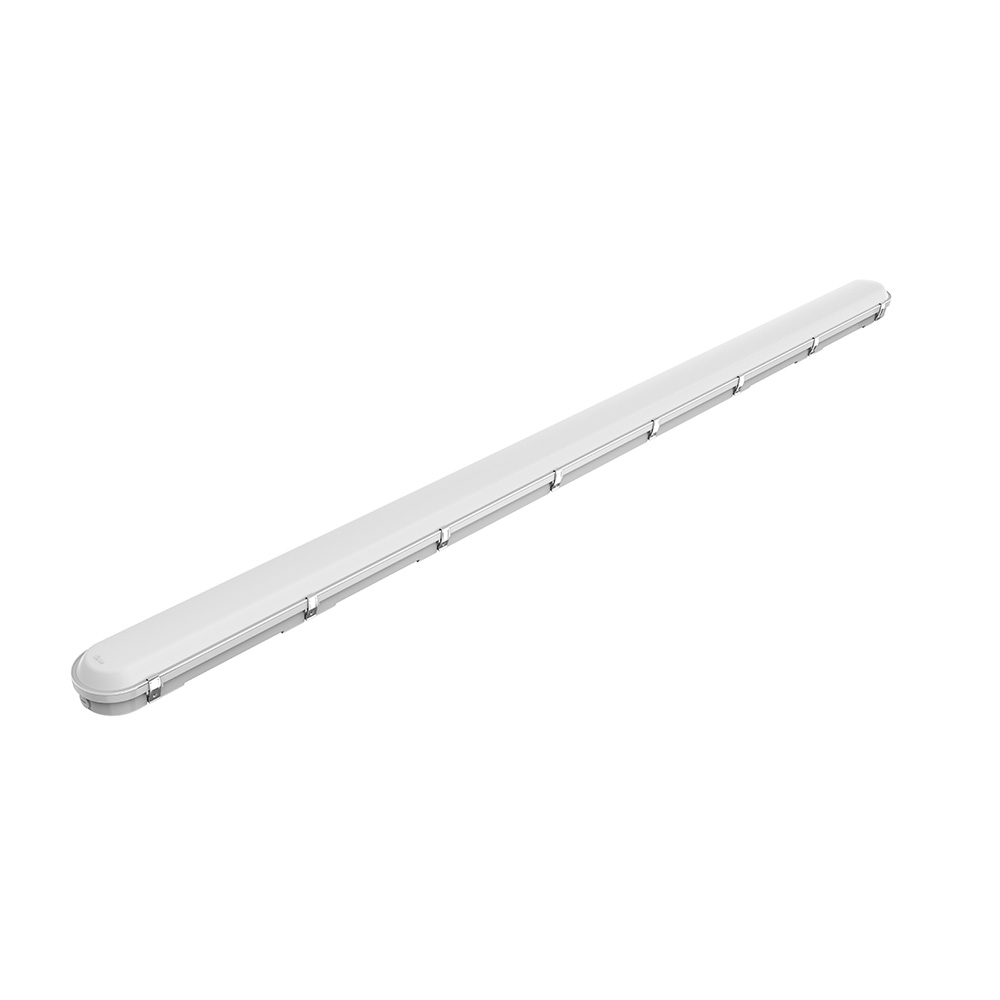

- Available in 2ft, 4ft, and 8ft models.
- Stainless Steel Clips: Housing designed to avoid clips failing. Also fewer clips required while maintaining NEMA 4X and IP6
- Wider Profile: 4.6″ wide to cover Standard junction box.
- Fewer Components: Reduce the number of pieces making it easier to install.
- Offset Driver: Driver is offset from the center and comes with 1′ long input cable.
- Perfect Flat Housing Back: Leaves no gap with mounting surface.
- Straightforward Assembly: 2 conduit entries at each end, and guide marks at the back for conduit entries.
- Cover for CCT and Wattages Switches: Prevents accidental changes to settings.
- Quick Disconnect: Detach housing and lens/LED board easily.
This product is not suitable for car washes. Please see our LFW-LED series for car wash applications.
Specifications
| Light Output | 4000/2900/2200 lm |
| Efficacy | 145 lm/W |
| CCT | CCT Selectable - 3500K/4000K/5000K |
| Beam Angle | 110° |
| CRI | > 80 |
| Replaces Up To | 2 Lamp F21T5 |
| Wattage | 27/20/15 W |
| Voltage | 120-277 V |
| Surge Protection (as per IEC/EN 61000-4-5) | 2kV (Built-in Driver); 10kV & 20kV (Optional) |
| Power Factor | >0.96 |
| THD | <17% |
| LED Life (L70) | > 100,000 Hrs |
| Battery Backup (Optional) | 8W |
| Dimming | 0-10V (10-100% Continuous Dimming, Dim to Off) |
| Control Options | Dimming High Frequency Motion Sensor (DHFS) with Bi-Level Dimming and Daylight Sensing |
| Length | 2ft |
| Housing | Polycarbonate; 5VA Flammability rated as per UL94; Outdoor rated (f1) as per UL746C |
| Lens | Frosted Polycarbonate; Outdoor rated (f1) as per UL746C |
| Latches (Stainless Steel) | Tool-less Latch (Standard); Secured Latch (Optional) |
| Latches Qty. | x6 |
| Finish | Grey |
| Predrilled Conduit Entries | Two (one at each end); Fits 1/2" TRADE Size |
| Mounting | Suspension, Surface (Ceiling or Wall) |
| Ambient Operating Temp. (Standard Fixture) | -40°C to 40°C (-40°F to +104°F) |
| Ingress Protection | IP67 |
| Certifications | cETLus certified per UL1598 & CSA C22.2 NO. 250.0:21; Wet Location, NEMA4X, NSF, IK10, DLC Premium |
