SMWN-LED

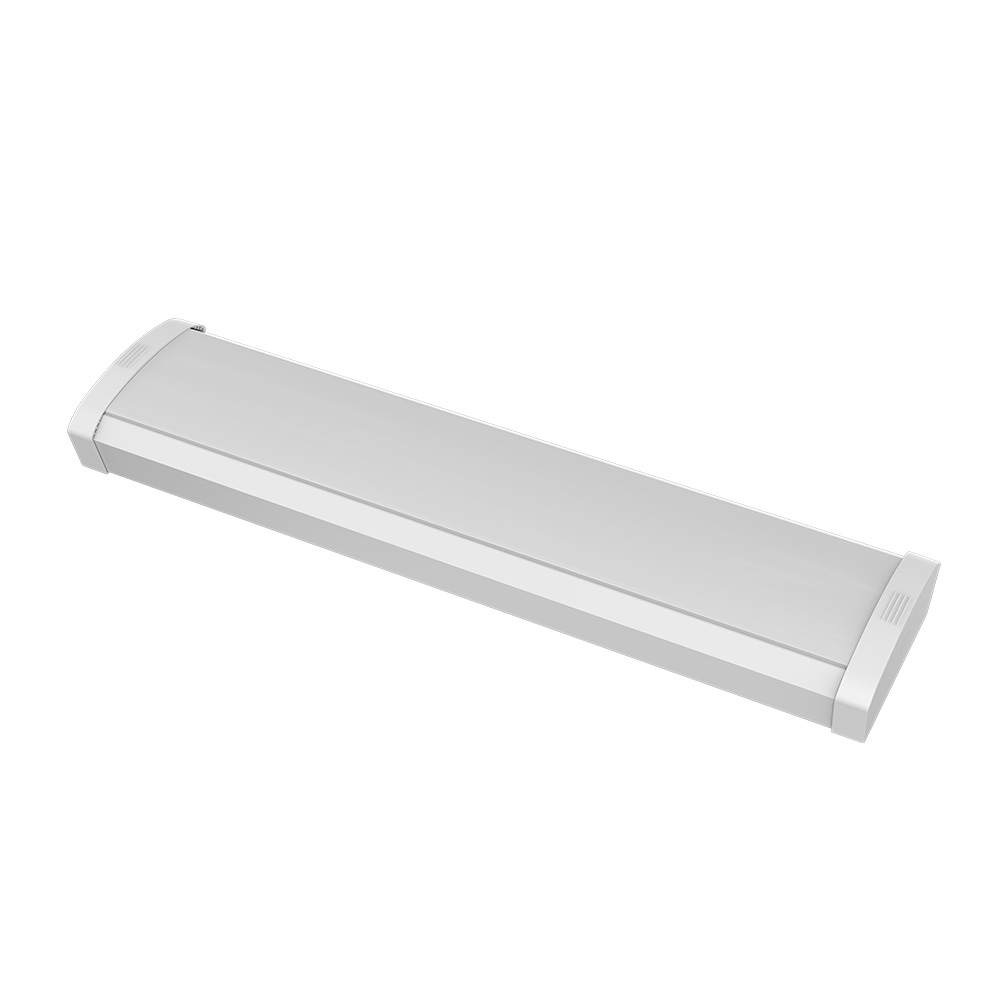

The SMW2N-LED and SMW4N-LED Surface Mount Wraps are 2′ and 4′ linkable linear fixtures for indoor use.
The wraparound fixture is easy to install, features a link connector for combining multiple fixtures in a row, and also features clips that slide off for easy wiring and maintenance
- Flexible link connector to easily combine up to 8 fixtures in a row for the SMW4N and 15 fixtures in a row for the SMW2N.
- Clips on either end slide off for easy wiring and maintenance.
- Easy mounting directly on the wall or ceiling.
- Sturdy steel base with polycarbonate end caps.
- Suitable for indoor applications.
- Frosted lens and white powder coat finish are standard.
Models Available
- SMW2N-B-VK – 2′ Linkable Luminaire
- SMW4N-LED48-B-VK – 4′ Linkable Luminaire (Variable CCT)
- SMW4N-LED48-B-VK with sensor receptacle – 4′ Linkable Luminaire (Variable CCT with sensor receptacle)
Specifications
| Light Output | 2900lm |
| Efficacy | 123 lm/W |
| CCT | 3500/4000/5000K (CCT Selectable) |
| Beam Angle | 110° |
| Replaces Up to | 2’ T8 lamp |
| CRI | 87 |
| Wattage | 24W |
| Voltage | 120-277V |
| Surge Protection | 2.5kV |
| Power Factor | >0.99 |
| THD | 11% |
| Daisy Chain | Max. 15 fixtures |
| Housing | Steel Housing |
| Lens | Frosted Polycarbonate Lens |
| Weight | 2.2 lbs |
| Ambient Operating Temperature | -40°C to 40°C (-40°F to 104°F) |
| Mounting | Surface Mount (Accessories Included), Suspension Mount |
| Certifications | ETL Listed for Canada & USA per UL 1598 & CSA C22.2#250.0 Ed.5, IP20, DLC Standard |
| Dimming | 0-10V (10-100% Dimming, Dim to Off) |
