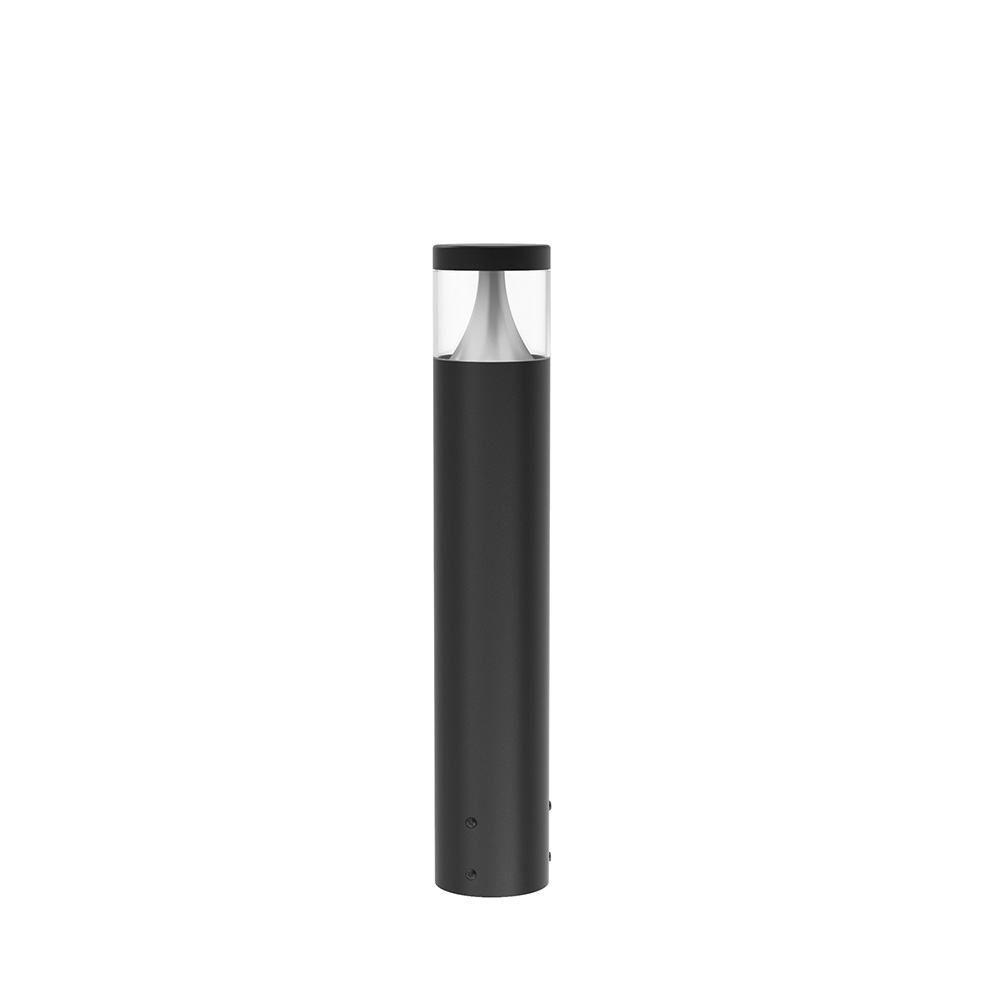

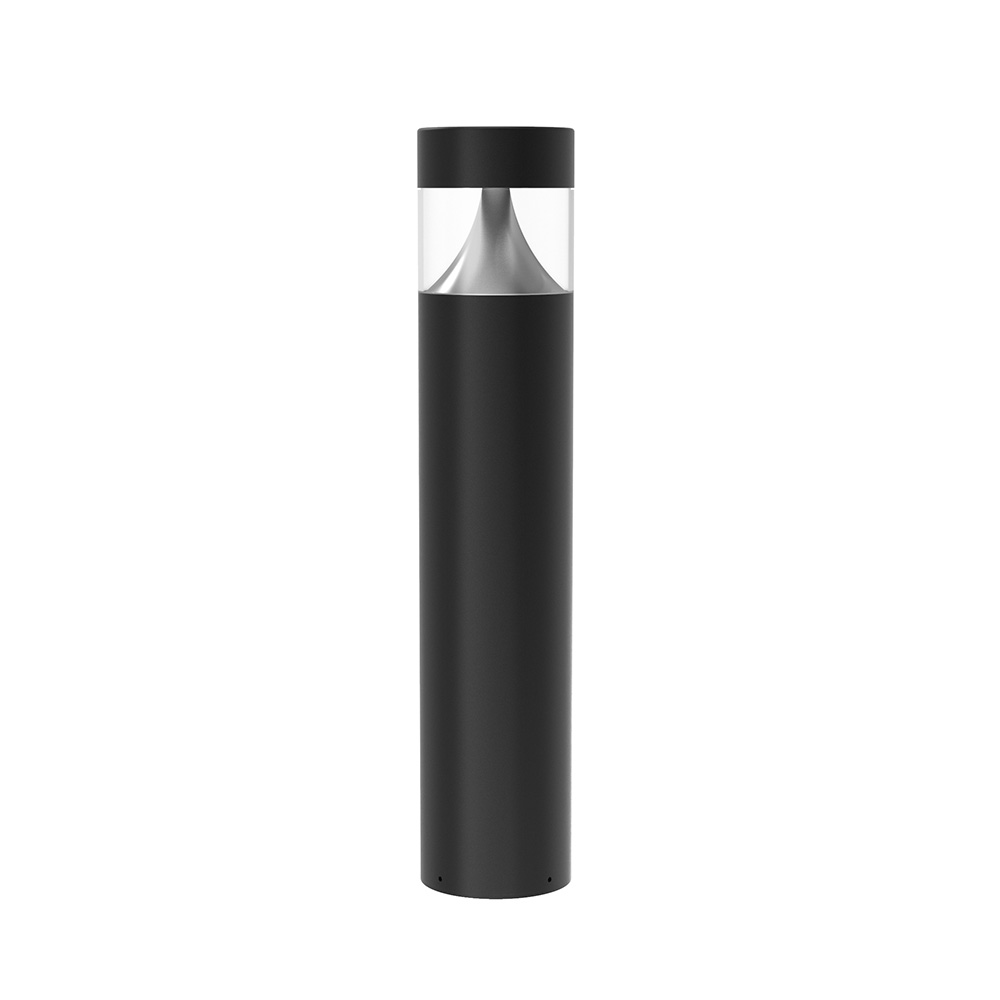

P6R/P8R-LED

Bollard LED

The P6R and P8R bollards are suitable for landscape and pathway lighting. Ideal for use in shopping malls and commercial real estate.


  • The lower body is an extruded aluminum that fits over base and secured with stainless steel screws.
  • Durable powder coat paint finish.
  • Upper body tops are secured with stainless steel screws. Durable powder coat paint finish and clear acrylic lens.
  • The upper reflector is secured to the aluminum top. Upper and lower reflectors are spun aluminum cone, anodized Type V distribution. An internal house shield is available at 90 or 180 degrees.
  • Cast aluminum base with four galvanized anchor bolts.
  • Lower body is secured to base with stainless steel screws.

Specification

ModelP6R-LED
Watts15
Lumens1040
Efficacy (Lumens/Watt)70
Replaces Up To35W HPS
Voltage120-277V*, 480V, 24V DC, 24V AC
CCT5000K*
Operating Temp -40C to +40C
Beam DistributionType 5*
Beam Angles90 Degree Cutoff, 180 Degree Cutoff
Lens OptionsClear Lens (Standard*), Frosted Lens
Finish OptionsBronze*, White, Black, Custom
CertificationcULus, Approved for Wet Locations
Warranty5 Years
