RAY-LED (2021)

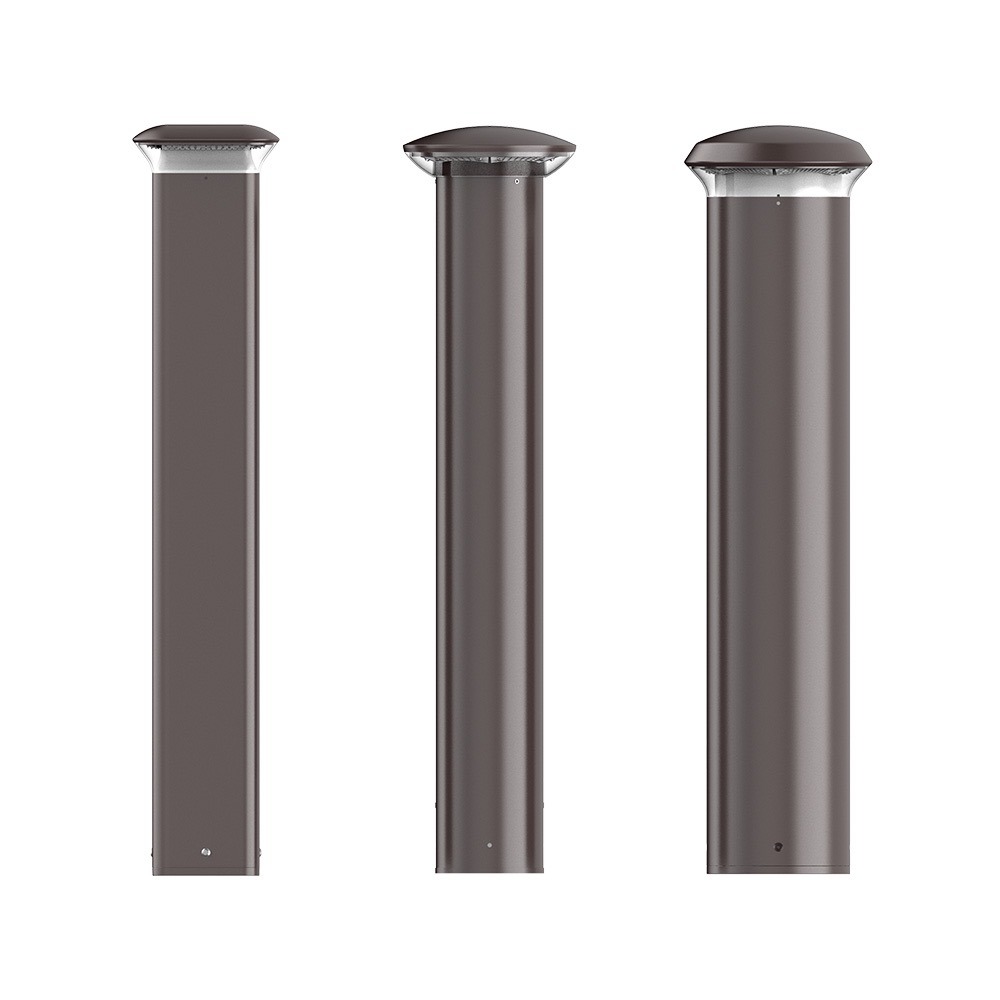

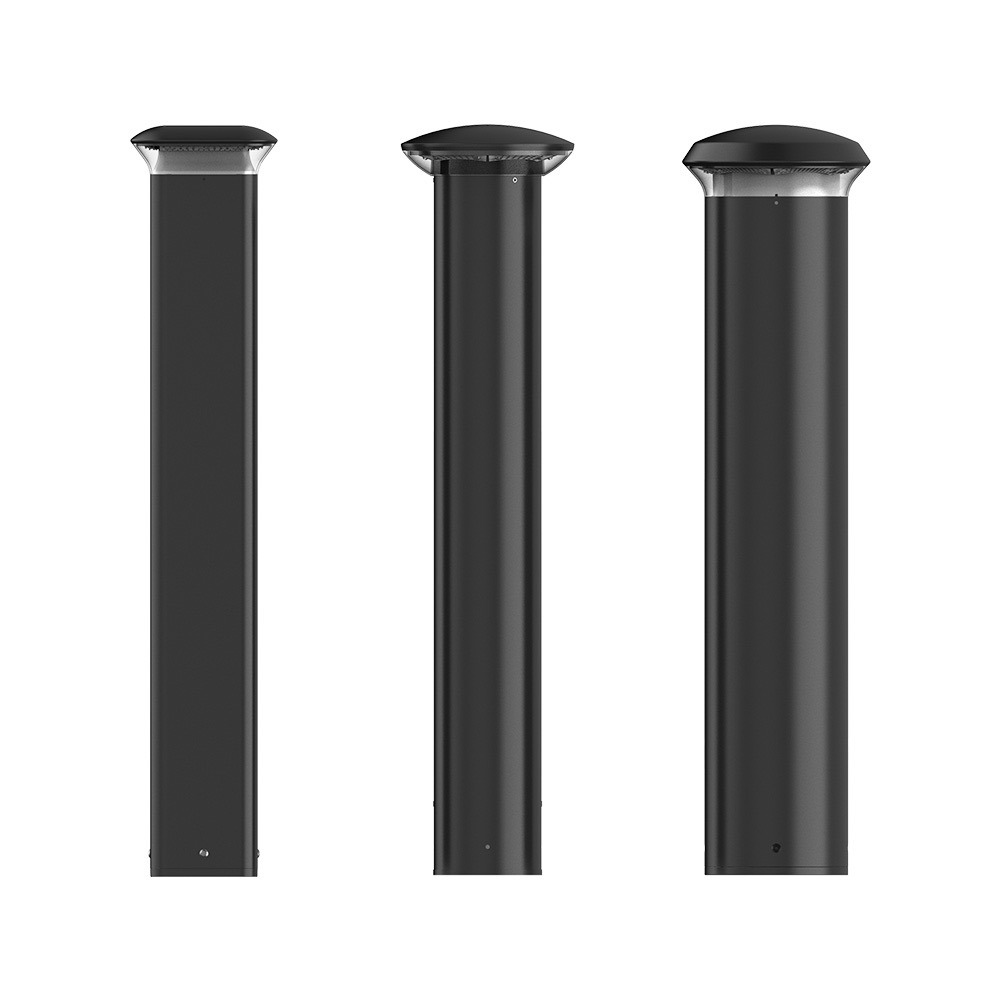

The RAY-LED bollard series features a sleek, architectural design that provides uniform, glare-free illumination. Available in 5 wattages, square and round shapes, different cut-off beam configurations, and multiple custom paint finishes.
Construction
- Body is made from extruded aluminum. The cast aluminum base is secured with stainless steel set screws.
Optics
- RAY6 has two light distributions available; Type V (3600) is standard & Type III (1800) is an option
- RAY8 has two light distributions available:
- Type V / 360° (RAY8-LED35) Type III / 180° (RAY8-LED20)
- Type V / 360° (RAY8SLED35) Type III / 270° (RAY8S-LED25) is an option
LEDs
- RAY6: Unit consists of 6 LED modules which can be removed to direct the light in desired direction.
- RAY8: Unit consists of 6 LED modules which can be removed to direct the light in desired direction.
- RAY8S: Unit consists of 4 LED modules which can be removed to direct the light in desired direction.
Specifications
| Watts (W) | 26 |
| Lumens (Maximum) | 3550 |
| Efficacy (Lm/W) | 136.2 |
| Colour Temp | 3000K, 4000K*, 5000K |
| Voltage | 120-277V* |
| CRI | 75 |
| THD | 16.9% |
| Dimming | 0-10V Dimming* |
| PF | 0.9 |
| LED Life @ 100,000 Hours | 76% |
| Beam Distributon | Type III (1800), Type V (3600)* |
| Finish | Bronze*, Custom Colour |
| Housing Details | Aluminum |
| Lens Details | Clear PC Lens |
| Operating Temp. | -30°C to 40°C |
| Certifications | UL, Wet Location, IP65 |
| Warranty | 5 Years |
