JAGUAR Series
The JAGUAR is an exceptionally versatile lighting fixture, featuring field-adjustable beam distribution, high efficiency, and advanced controls to optimize lighting layouts for any area light application. Additionally, the standard fixture includes selectable features such as color selection, wattage selection, and a wide voltage range of 120-227V, and 480V making it one of the most feature-rich area lights available on the market.
Performance:
- Installer can select either 3000K or 4000K or 5000K color temperature with a CCT select switch during installation.
- Beam Distribution- Variable Distribution – VD1 (Type III/Type IV/Type V); VD2 (Type II/Type III/Type IV) (Optional)
- Adjust beam distribution effortlessly using a switch—no need to swap or reorient optics.

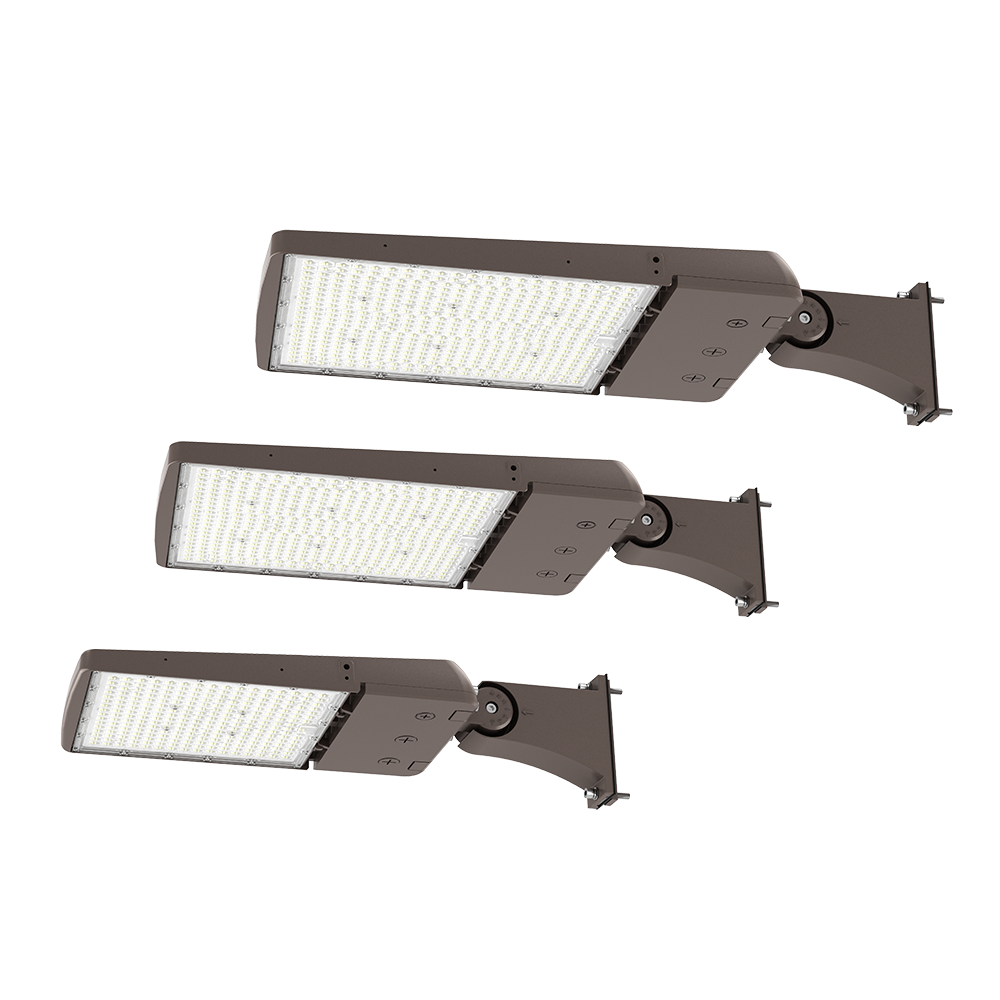

- The JAGUAR Series is available in 2 different sizes with a comprehensive range of lumen packages ranging from 10000lm – 48000 lm.
- Power factor 0.99 results in reduced power losses and an efficacy of >160 lumens per watt.
- -40°F to +122°F (-40°C to 50°C) Ambient Operating Temperature to withstand cold winters.
Electrical:
- Fixture driver is available as 120-277V, and 480V.
- High surge protection of 6 kV Internal & 10 kV External per UL1449.
Construction:
- Robust construction with die cast aluminum.
- Polycarbonate Lens/Optics.
- Weather and Corrosion Resistant Polyester Powder Coat Finish.
- Standard housing finish is bronze. Custom finishes are available.
Factory Installed Controls:
- DHFS Motion Sensor, PBLS Control, Twist Lock Photocell, 3 PIN or 7 PIN Receptacle with Shorting Cap ANSI C136 compliant, 20 kV Surge Protection (120-277 V)
Options Sold Separately:

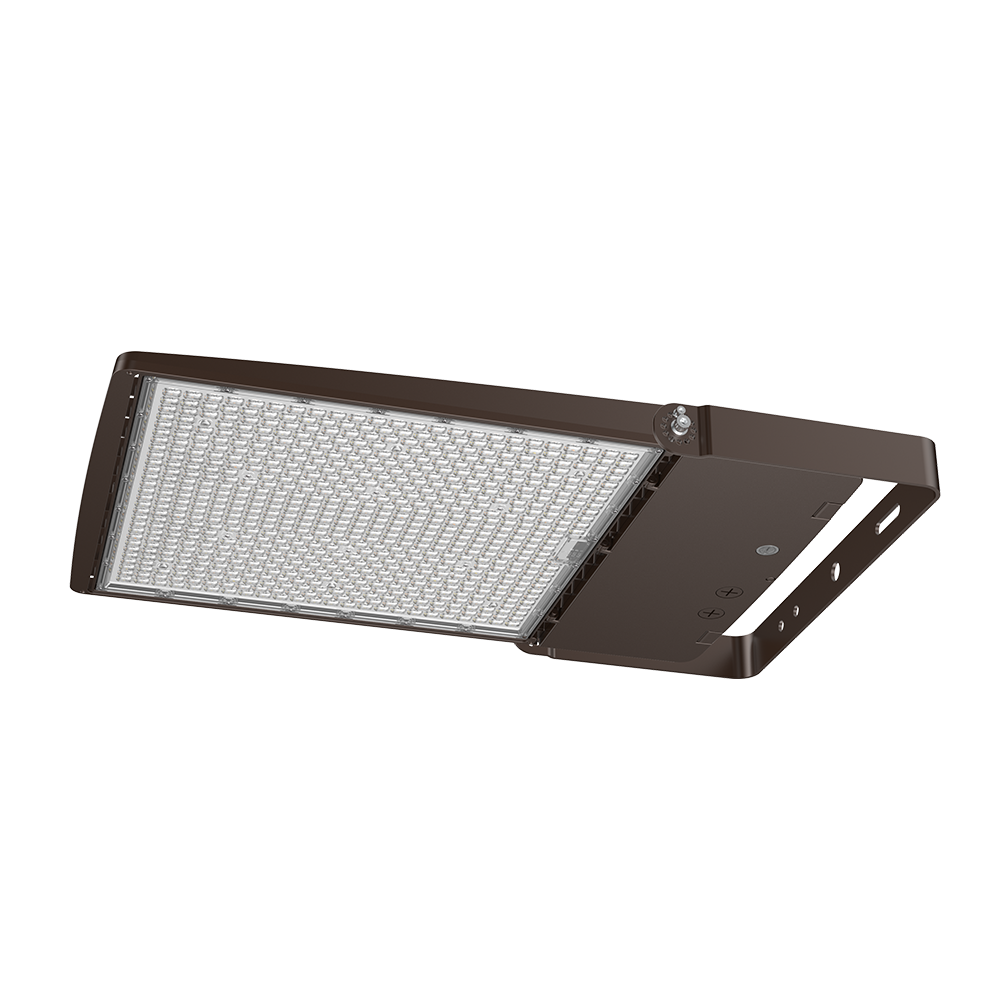

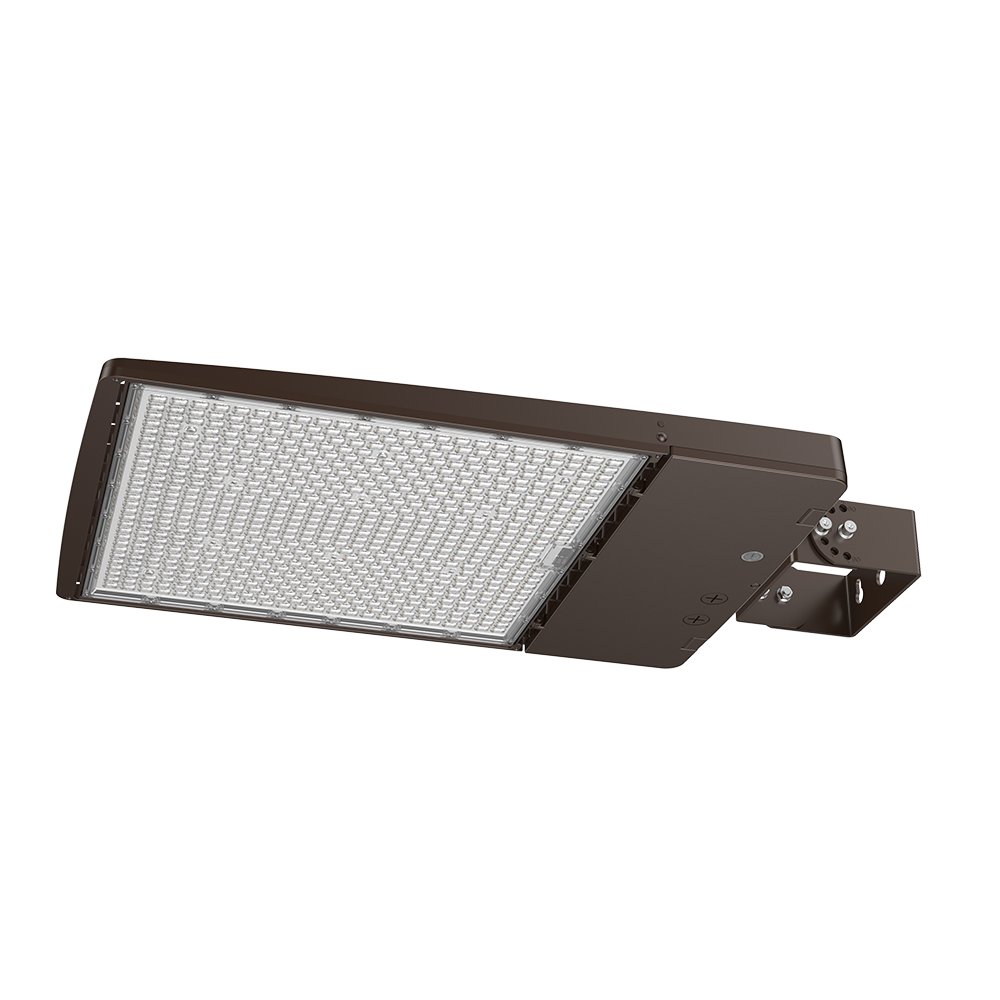

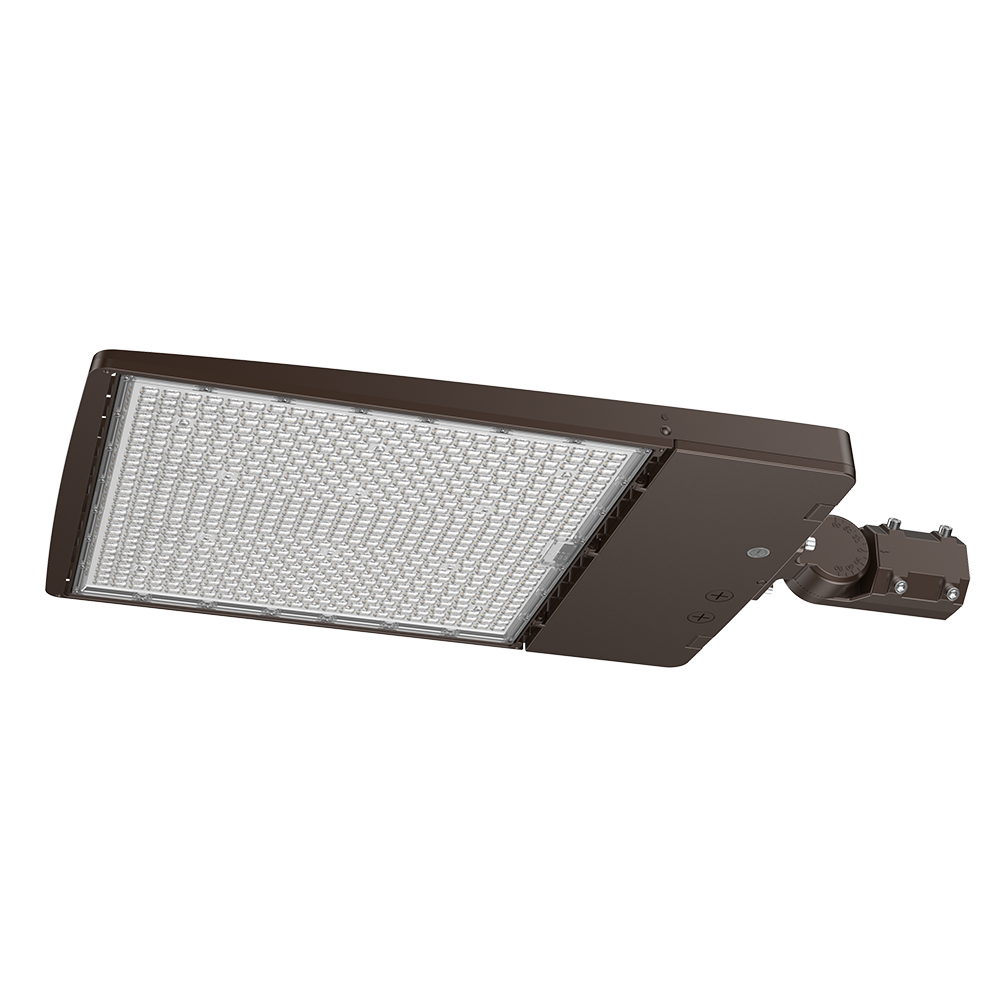

- Variety of mounting options- Slip Fitter, Direct Mount for Round/Square Poles, Trunnion Mount, Yoke Mount.
- PBLS Remote Control.

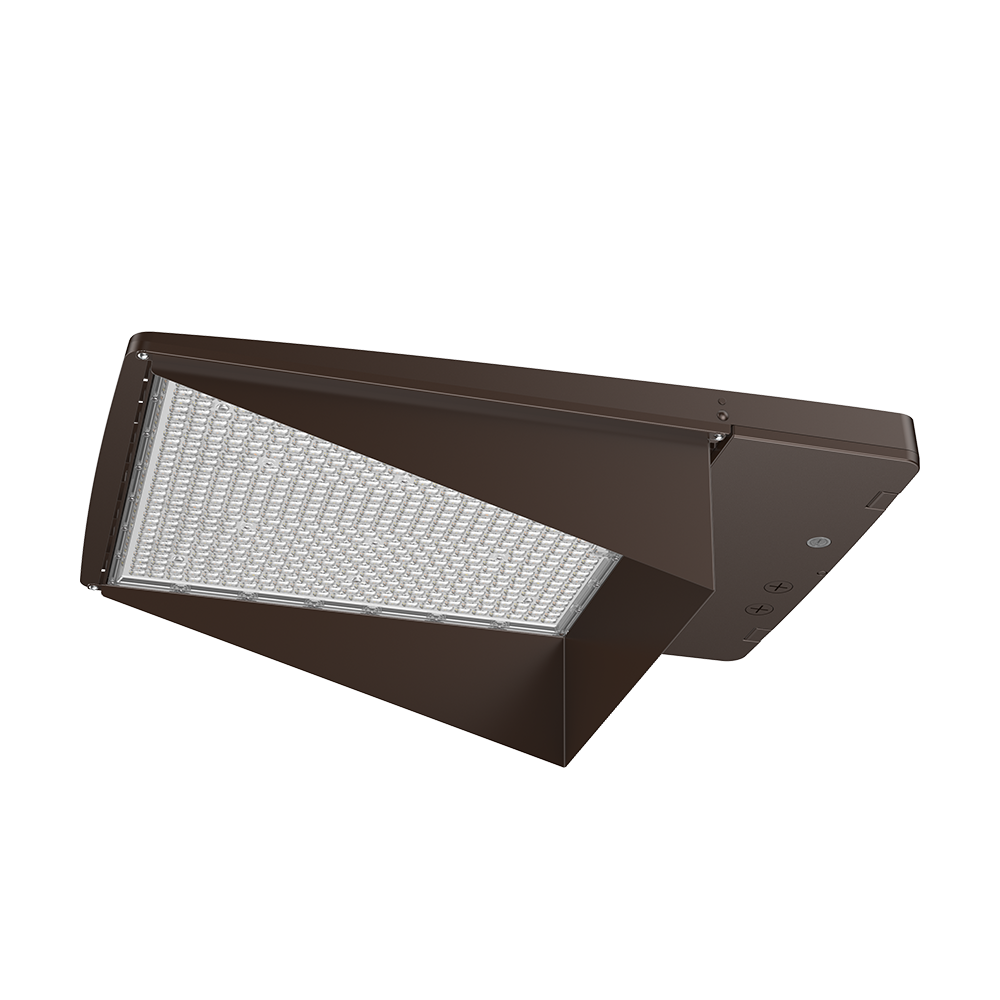

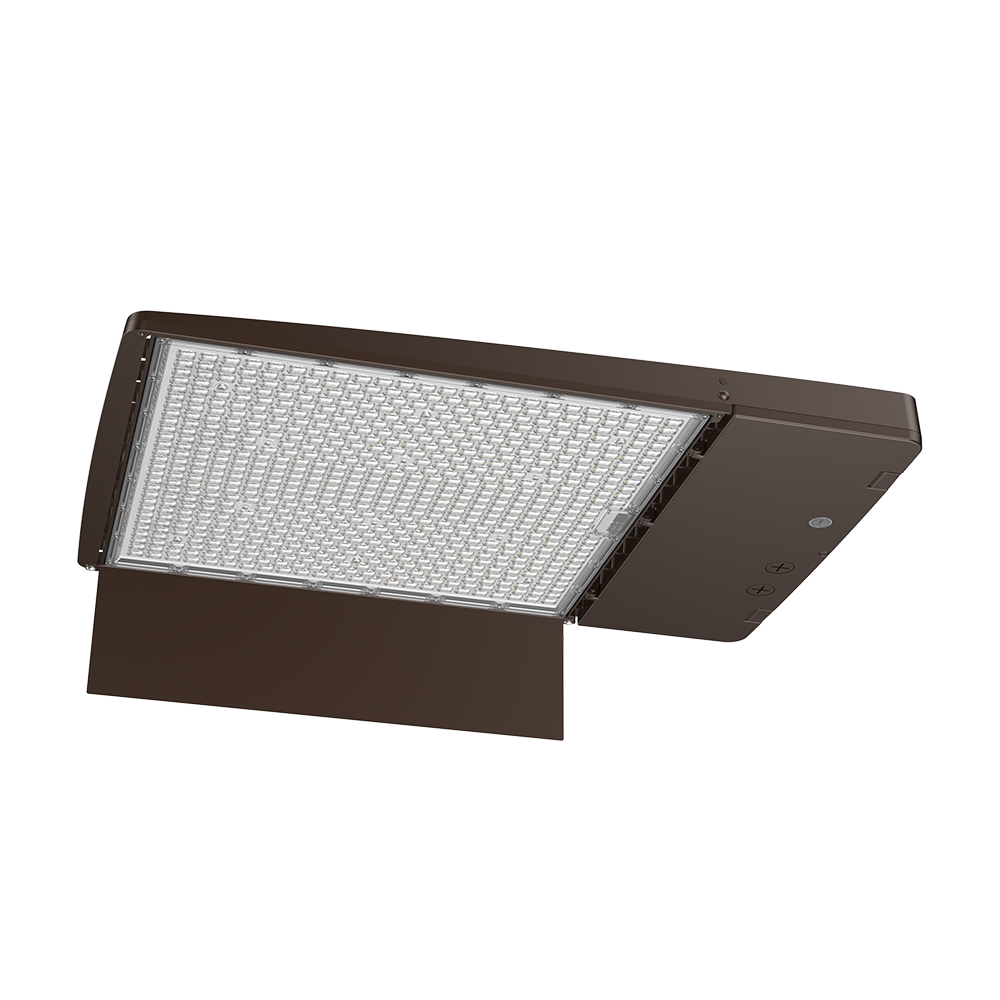

- House Side Cutoff, Side Cutoff.
- DHFS Motion Sensor Remote Control.
Specifications
| Light Output | 16700/13400/10000 lm |
| Efficacy | 167 lm/W |
| CCT | CCT Selectable - 3000K/4000K/5000K |
| Beam Distribution | Variable Distribution - VD1 (Type III/Type IV/Type V); VD2 (Type II/Type III/Type IV) (Optional) Adjust beam distribution effortlessly using a switch—no need to swap or reorient optics. |
| LED Lifetime (L85) | 100,000 Hours |
| CRI | 84 |
| Wattage | 100/80/60 W |
| Voltage | 120-277V, 480V |
| Surge Protection | 6 kV Internal & 10 kV External per UL1449 |
| Power Factor | 0.99 |
| THD | 4.49% |
| Dimming | 0-10 V (0-100%) |
| Replaces Up To | 250W MH |
| Cable Specs | Input Power - 1 m Cabtire Cable (3x18 AWG) Dimming - 1 m Cabtire Cable (2x18 AWG) |
| Ambient Operating Temperature | -40°F to +122°F (-40°C to 50°C) |
| Certifications | cULus Certified as per UL 1598 & CSA C22.2, IP65, Wet Location, DLC Premium |
| Factory Installed Controls | DHFS Motion Sensor, PBLS Control, Twist Lock Photocell, 3 PIN or 7 PIN Receptacle with Shorting Cap ANSI C136 compliant, 20 kV Surge Protection (120-277 V) |
| Options sold Separately | Slip Fitter, Direct Mount for Round/Square Poles, Trunnion Mount, Yoke Mount, House Side Cutoff, Side Cutoff, DHFS Motion Sensor Remote Control, PBLS Remote Control |
| Housing | Die-cast Aluminum |
| Lens/Optics | Polycarbonate Lens/Optics with integral field-adjustable light distribution allows beam distribution changes without replacing or re-orienting the lens/optics. |
| Paint | Weather and Corrosion Resistant Polyester Powder Coat Finish |
| Housing Finish | Bronze, Custom Colors |
| Weight (Fixture Only) | 10.58lbs (4.8kg) |
| Default CCT | 4000K |
| Default Wattage | 100W |
| Default Beam Distribution | VD1 - Type III, VD2 - Type II |
