FW4-LED41/61
4’ linear vaporproof fixture with NEMA 4X, NSF, IK10 ratings ideal for harsh environments including food processing and storage facilities, livestock barns, agricultural environments, underground parking garages, and more.
FEATURES:
- 2 versions: Selectable units (120-277V, CCT Select 3000K,4000K,5000K) and dedicated units (120-277V, 4000K).
- Ruggedly designed with NEMA 4X, NSF, IK10 ratings.
- Polycarbonate housing with frosted lens.
- 5 polycarbonate clips on either side.

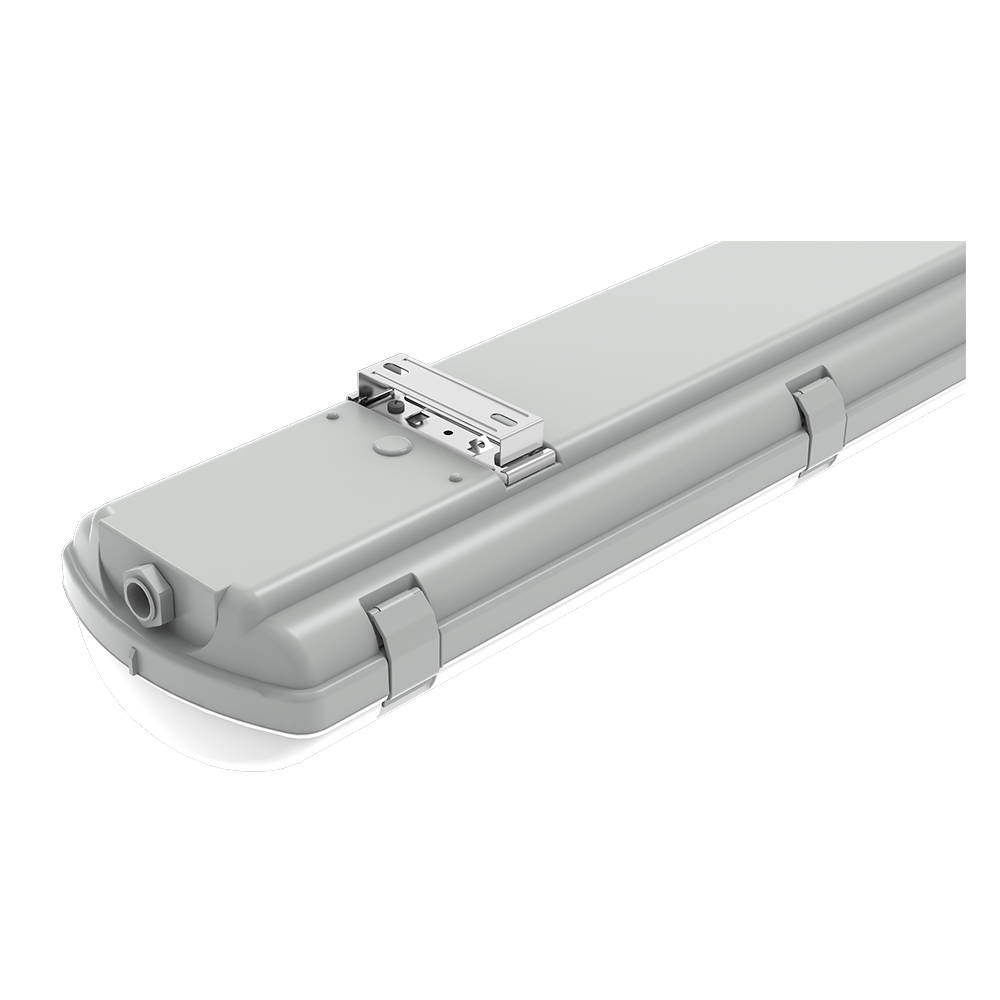

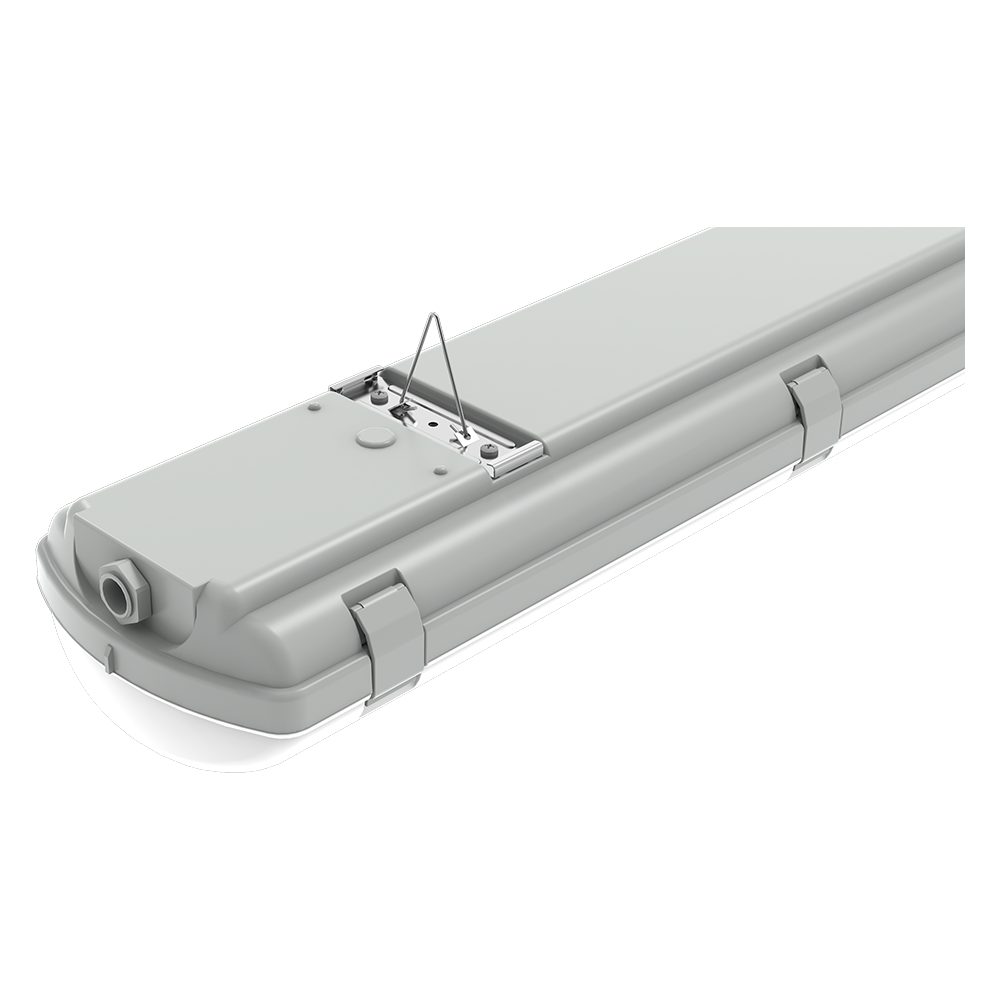

- Surface or pendant mount option.
- IP66 rated with complete gasketing to protect against dust and dirt and comes with wet location connector.
- Toolless entry for easy wiring and access to CCT select switch.
- (FW4-LED41) Optional factory-installed smart lighting control available: Lutron Athena Wireless smart control allows zone and control changes digitally and wirelessly.
This product is not suitable for car washes. Please see our LFW-LED series for car wash applications.
Specifications
| Model | FW4-LED41 |
| Wattage | 41.2W |
| Lumens | 5507 Lm |
| Efficacy (Lumens/Watt) | 133.6 Lm/W |
| Replaces Up To | 2 Lamp T8 |
| Dimming | 0-10V (Continuous dimming to 10% or below) |
| Color Temp | Color Selectable (3K, 4K, 5K) or 4K only |
| Power Factor | 0.95 |
| THD | 6.7% |
| CRI | 82 |
| Operating Temp | -40˚C to +40˚C (With Battery Back Up: 10˚C to + 40˚C) |
| Voltage | 120-277V |
| LED Lifespan (L73) | 100,000 Hours |
| Housing Material | Polycarbonate Grey |
| Lens | Frosted Polycarbonate |
| Mounting | Surface Mount or Pendant Mount |
| Certifications | cULus certified as per UL 1598 & CSA C22.2 NO. 250.0:21, Wet locations, IP66, NSF, NEMA4X, IK10, DLC Standard, and Lutron's AWM Controls |
| Warranty | 5 Years |
- RDA-FW4-LED41
- FW4-LED61
IES Files
- RDA-FW4-LED41_61-Install-Inst-Eng-2022-02-22
