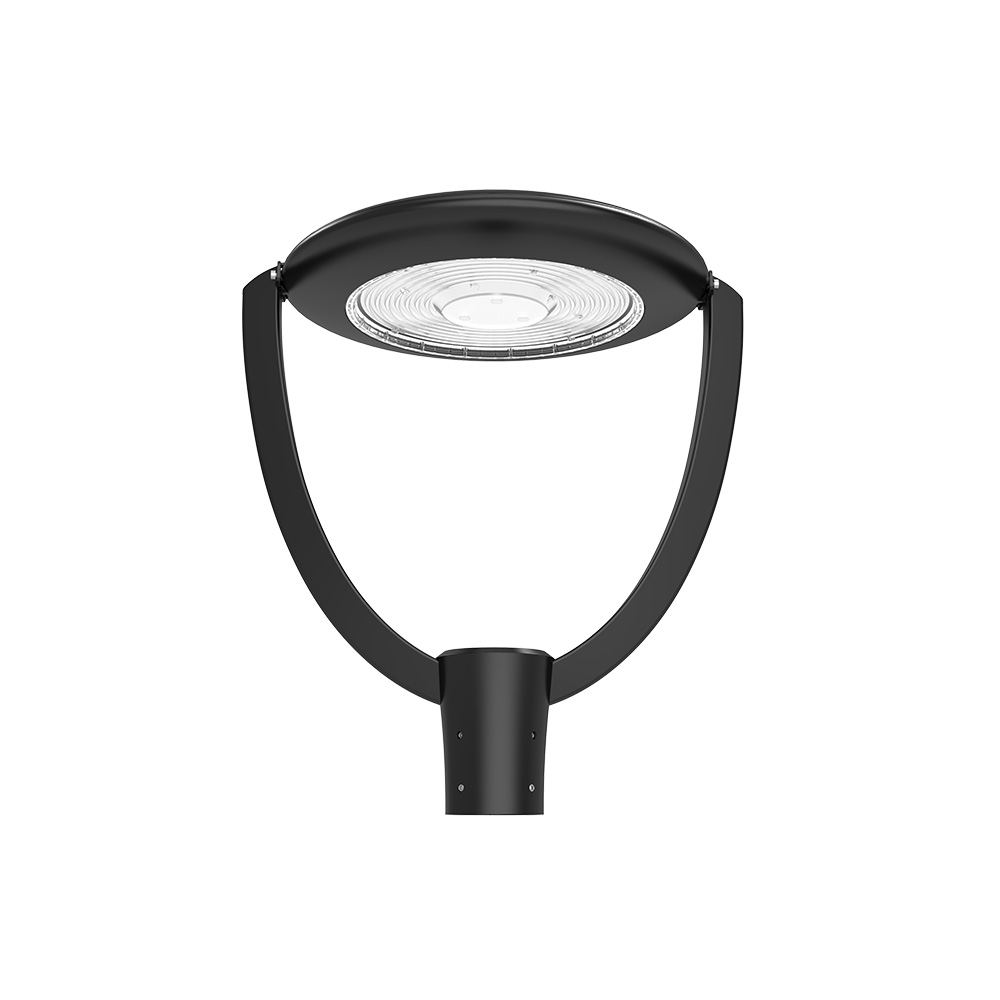

XBAR-LED Series
The XBAR-LED Series is a slim, round post top area light which offers universal features including color selectability, wattage selectability and wide voltage driver, allowing customer to choose the right setting for their job. A high quality post top comes with high efficacy, additional surge protection, standard photocell, and corrosion resistant powder coat finish makes XBAR-LED a popular choice for many post top area light applications.
Features:
- Die cast aluminum housing with matte black finish and clear polycarbonate lens. Custom color finish is also available.
- Operates at a temperature of -40°C to 45°C (-40°F to 113°F).
- XBAR1 is a color selectable fixture that gives you the flexibility to choose between 3000K, 4000K or 5000K CCT during installation.
- XBAR1 units have a switch inside the housing that is set at a default CCT of 4000K that can be adjusted if needed.
- XBAR2 fixtures have a dedicated CCT of 4000K or 5000K
- Optional twist lock photocell.
- Fixture has been designed to fold neatly to minimize packaging footprint.
Specifications
| Light Output | 5000/3600/2200 lm (Lumen Selectable) |
| Efficacy | 143 lm/W |
| CCT | 3000/4000/5000K (CCT Selectable) |
| Beam Distribution | 90 Degree |
| B-U-G Rating | 2-2-1 |
| Replaces Up to | 100W MH |
| LED Lifetime (L80) | >100,000 Hrs |
| CRI | 83 |
| Wattage | 35/25/15 W |
| Voltage | 120-277V |
| Surge Protection | 6 kV Internal (LED Driver) & 10 kV External per UL1449 |
| Power Factor | >0.9 |
| THD | <17% |
| Cord | Input Power - 1 m SOOW Cable (3x18 AWG), Dimming - 1 m SJOW Cable (2x18 AWG) |
| Housing | Die-cast Aluminum |
| Paint | Weather and Corrosion-resistant polyester powder coat finish with 200 hours salt spray rating as per ASTM B117 |
| Lens | Clear Polycarbonate |
| Weight | 4.5 kg (9.9 lbs) |
| Mounting Type | Post top (Fits 2-3/8" to 3" Tenon) |
| Ambient Operating Temperature | -40°C to 45°C (-40°F to 113°F) |
| Certifications | cULus Certified as per UL 1598 & CSA C22.2, IP65, Wet Location, DLC Premium |
| Dimming | 0-10V (10% to 100% Dimming, Dim to Off) |
| Sensor | Integrated Photocell |
