FL-LED
The FL-LED Series is a high-efficiency floodlight family designed with a wide beam distribution for versatile general-area illumination. FL2 and FL3 fixture models feature integrated photocell, selectable wattage and color temperature settings, giving customers the flexibility to customize light output and appearance to suit their specific application. Ideal for building facades, patios, yards, landscape lighting, and sign illumination when mounted with an arm.
Features:
- High-efficiency floodlight family designed with a wide beam distribution for versatile general-area illumination.

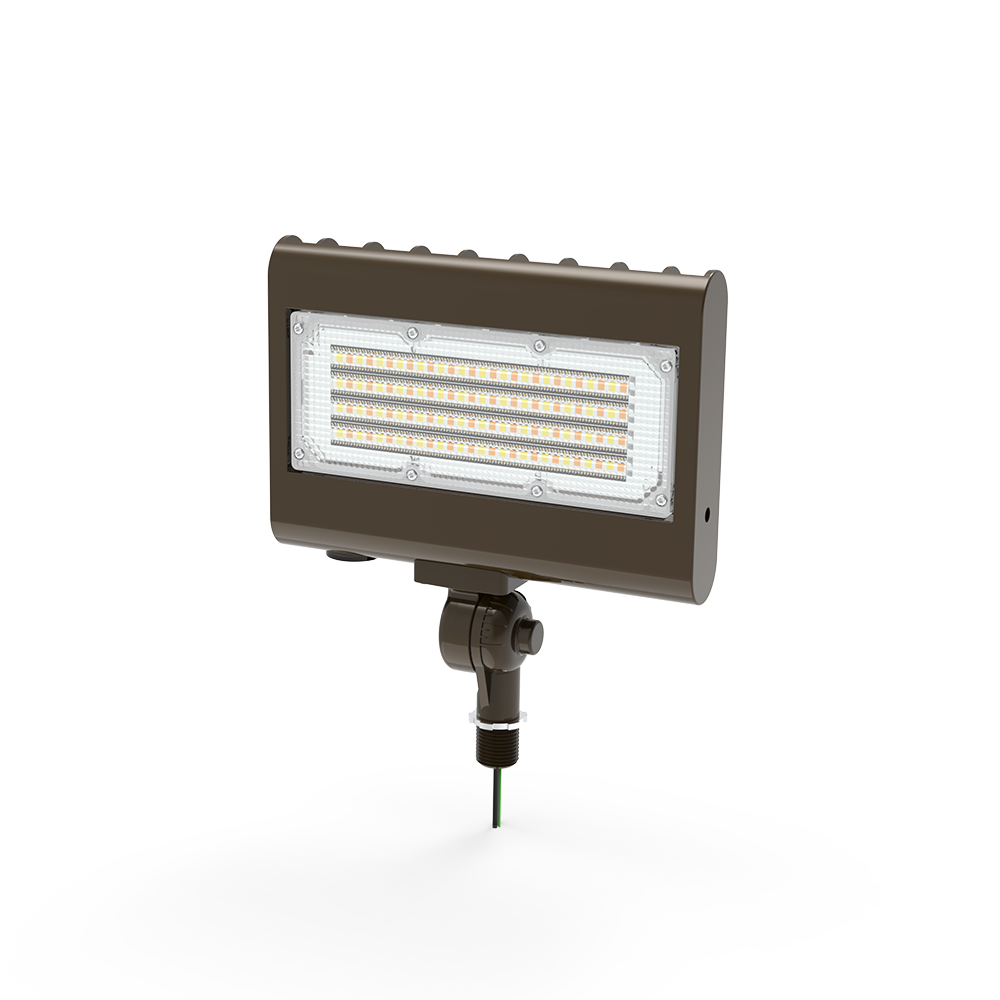

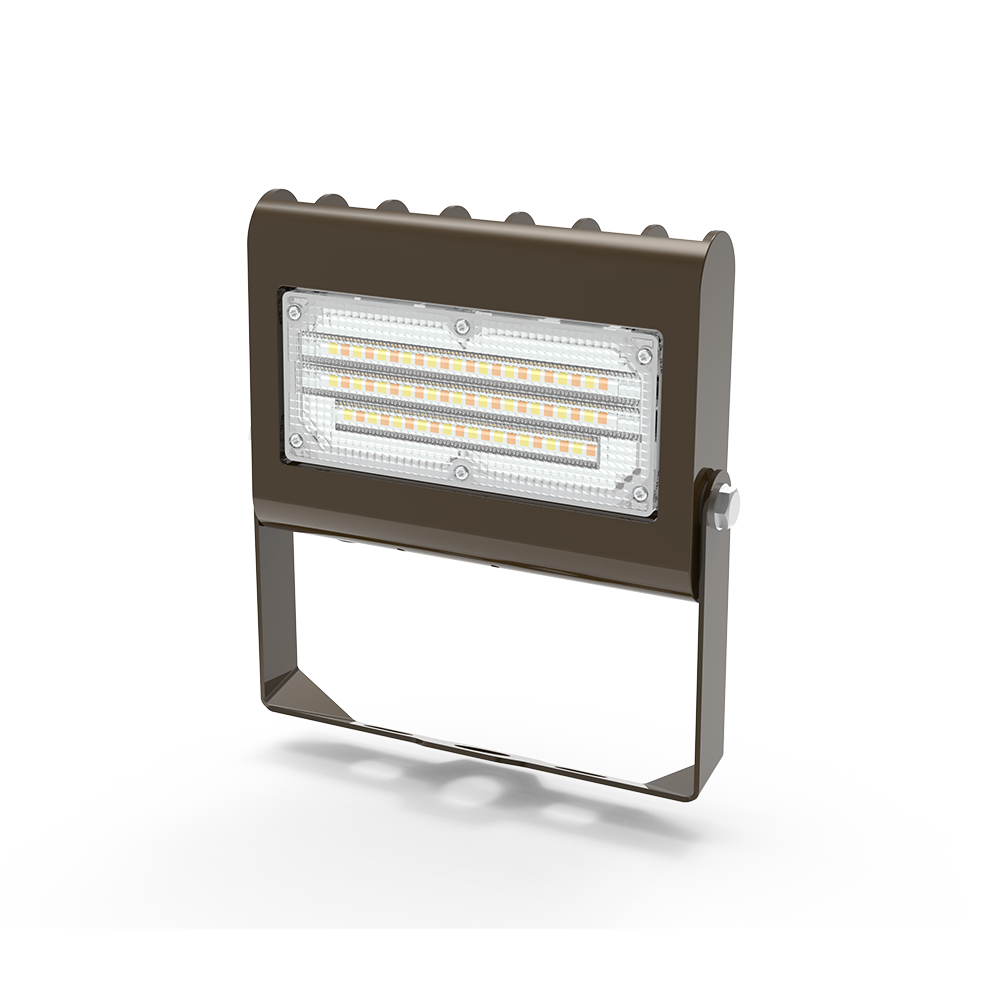

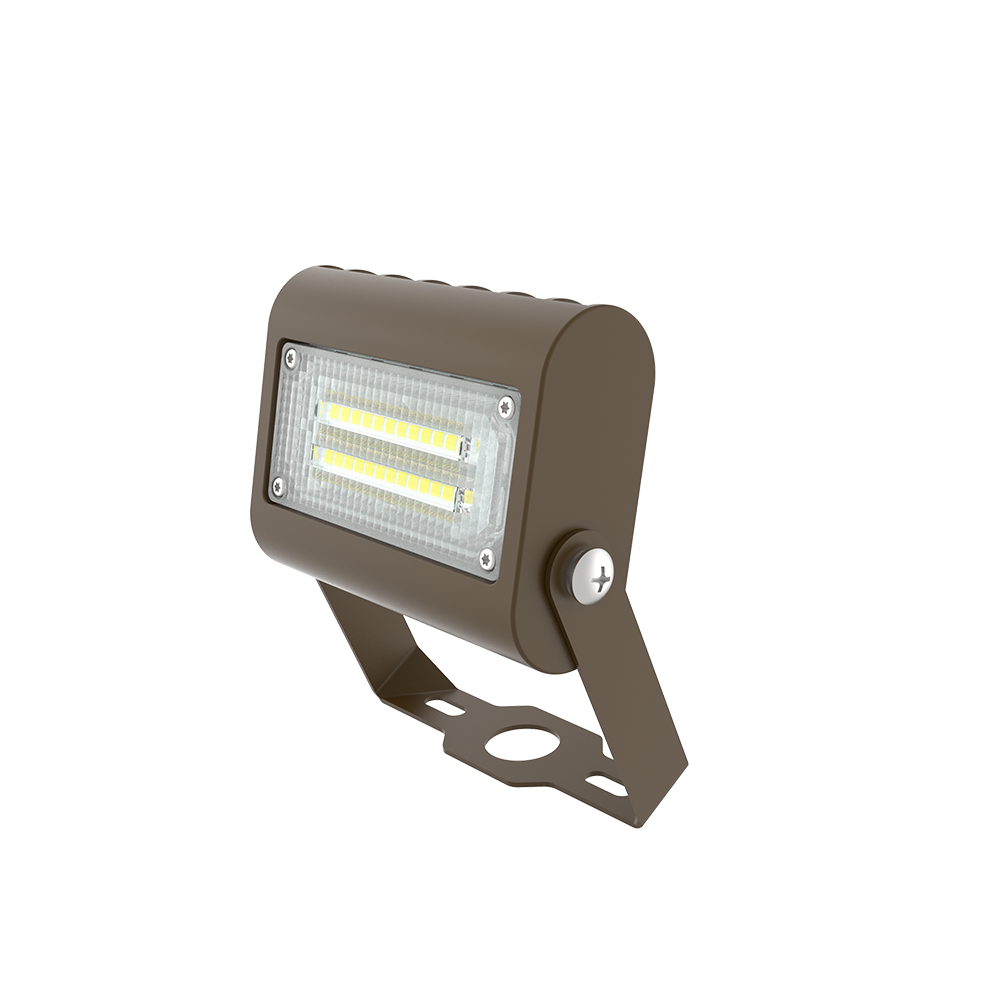

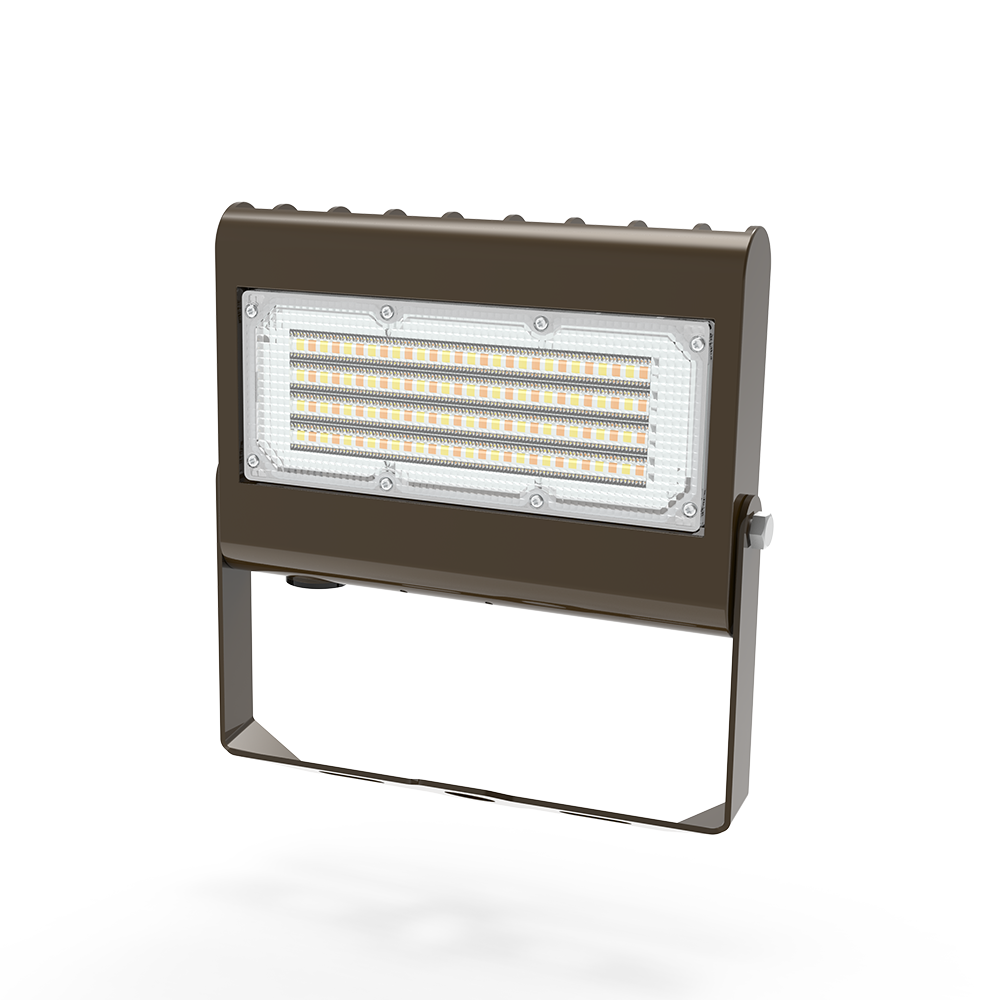

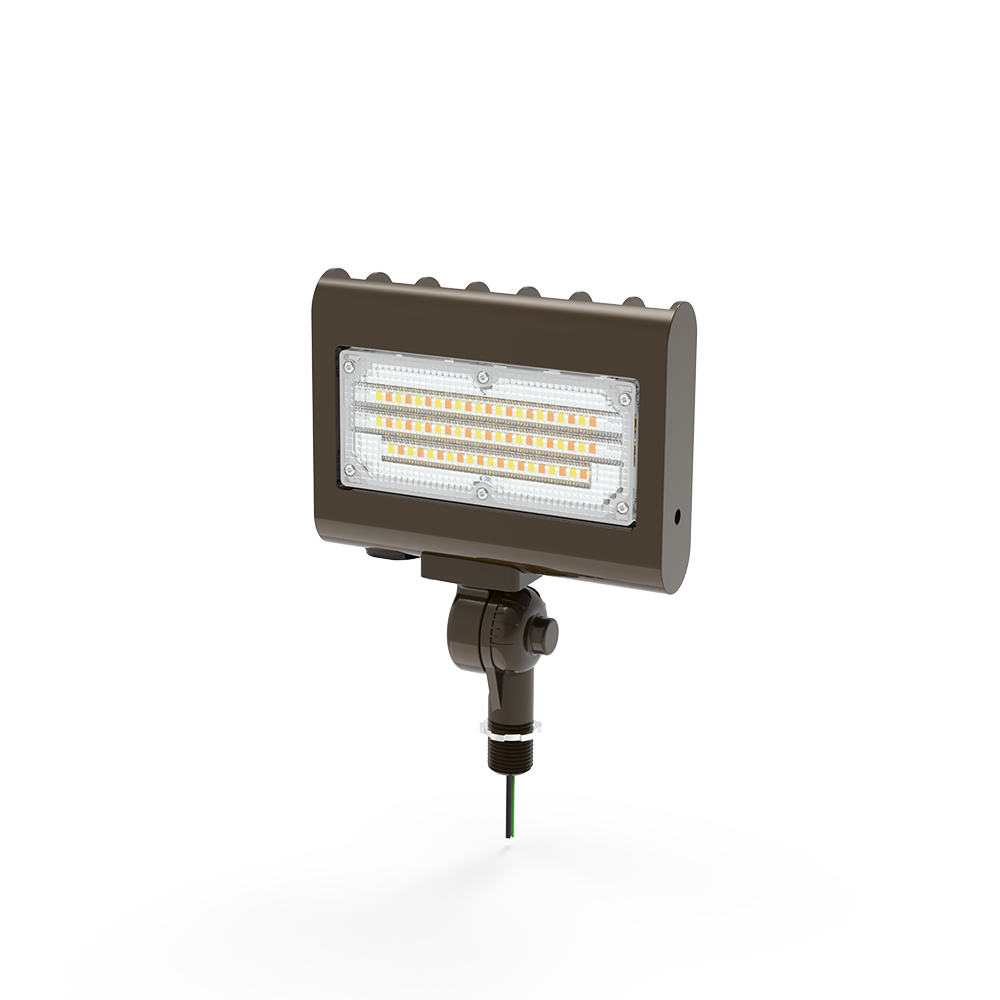

- Available as a knuckle or yoke mount. Can also be used as a sign light when combined with various arms.
- FL2 & FL3:
- Selectable CCT, lumen output, wide voltage input, and on/off photocell control make it easier to configure the right light for different project needs.
- DLC 6.0 Premium Listed to help projects meet rebate requirements and unlock greater rebate potential.
Specifications
| Light Output | 1900 lm |
| Efficacy | 147 lm/W |
| CCT | 4000K, 5000K |
| Beam Distribution | Wide - NEMA 7H X 7V |
| B-U-G Rating | 1-0-0 |
| Replaces Up To | 150W Quartz |
| LED Lifetime (L80) | >100,000 Hrs |
| CRI | 73 |
| Wattage | 15 W |
| Voltage | 120-277 V |
| Surge Protection | 2 kV |
| Power Factor | > 0.9 |
| THD | < 15 % |
| Cord | Yoke: Pre-installed 1' 300V Power Cable (3x18 AWG), 1' Dimming Cable (2x18 AWG) Knuckle: Pre-installed 6" of individual wires |
| Housing | Die-cast Aluminum |
| Paint | Weather and Corrosion-resistant polyester powder coat finish |
| Lens | Polycarbonate Lens |
| Weight | 1.10 lbs |
| Mounting Type | Yoke Mount, Knuckle Mount |
| Ambient Operating Temperature | -40°C to 45°C (-40°F to 113°F) |
| Certifications | cULus Listed for Canada and USA, per UL 1598, CSA C22.2 No. 250.0:21, DLC, IP65 |
| Dimming | 0-10V (10% to 100% Dimming, Dim to Off) |
| Sensor | None |
- RDA_2026_05_FL-LED-Select_SpecSheet_EN_1.0
Spec Sheets
- RDA_2026_05_FL1-FL2-FL3_IES-Files_1.0
IES Files
- RDA_2026_03_FL-LED_Install-Instructions_EN_1.0
