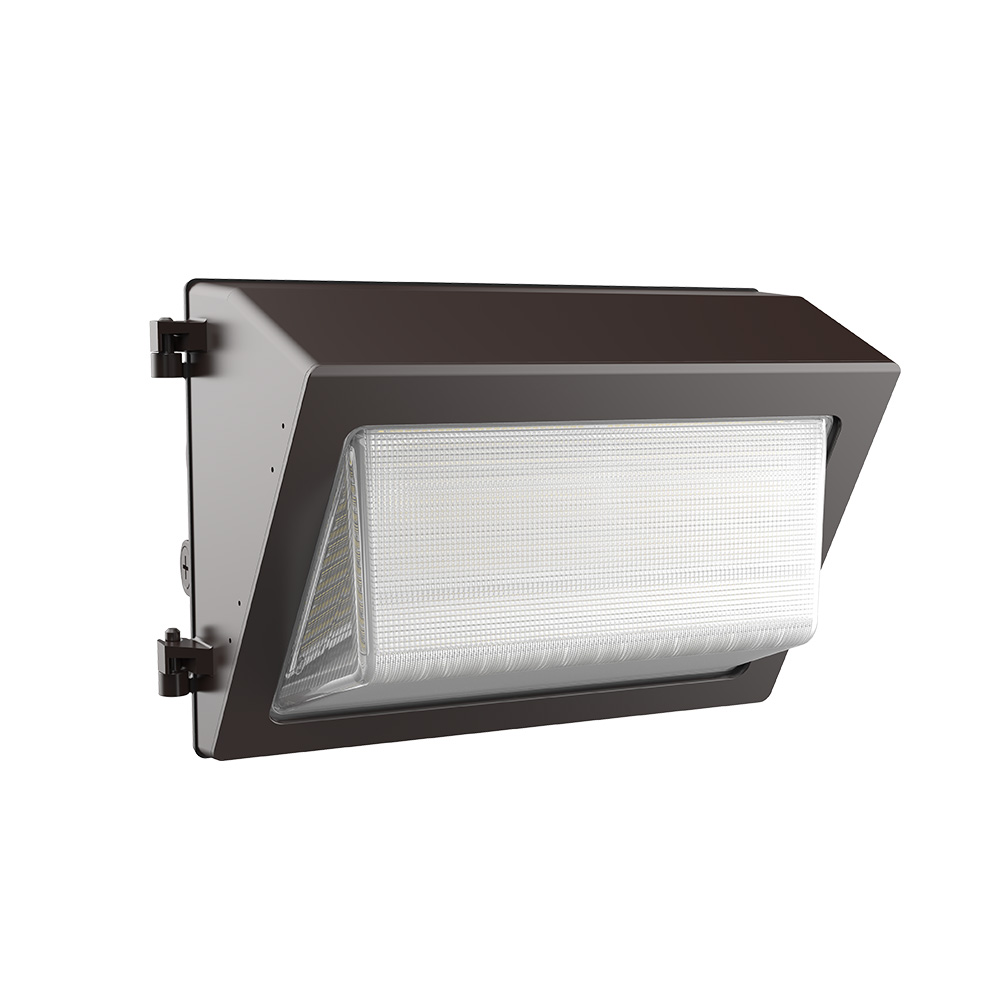

WP-LED Series

Wallpack LED

A Traditional Wall Pack with the newest lighting technology. Die cast aluminum housing with side hinge and borosilicate glass.


  • Serves as an ideal replacement for 150W – 400W HID wallpacks.
  • Color selectable switch inside fixture allows the installer to choose between 3000K/4000K/5000K CCT.
  • Die-cast aluminum housing with borosilicate glass lens.
  • Side hinge design allows the installer to use two hands for writing.
  • Photocell and motion sensor options are available.

Specification

Model WP-LED40
Watts 41W
Voltage 120-277V
Lumens 5712
Efficacy 140.9
Replaces Up To 175W MH
B-U-G 1-3-4
Color Temp. VK - 3000K, 4000K, 5000K Color Selectable (4000K default setting
CRI >80
Distribution Type IV Short
Operating Temp. -40° C to +50° C
Housing Material Die Cast Aluminum
Lens Material Borosilicate Glass
Finish Bronze*, Custom Colors
Factory Installed Options Photocell, 10kV Surge Protector, Dimming Motion Sensor, On/Off Motion Sensor, Dimming High Frequency Motion Sensor

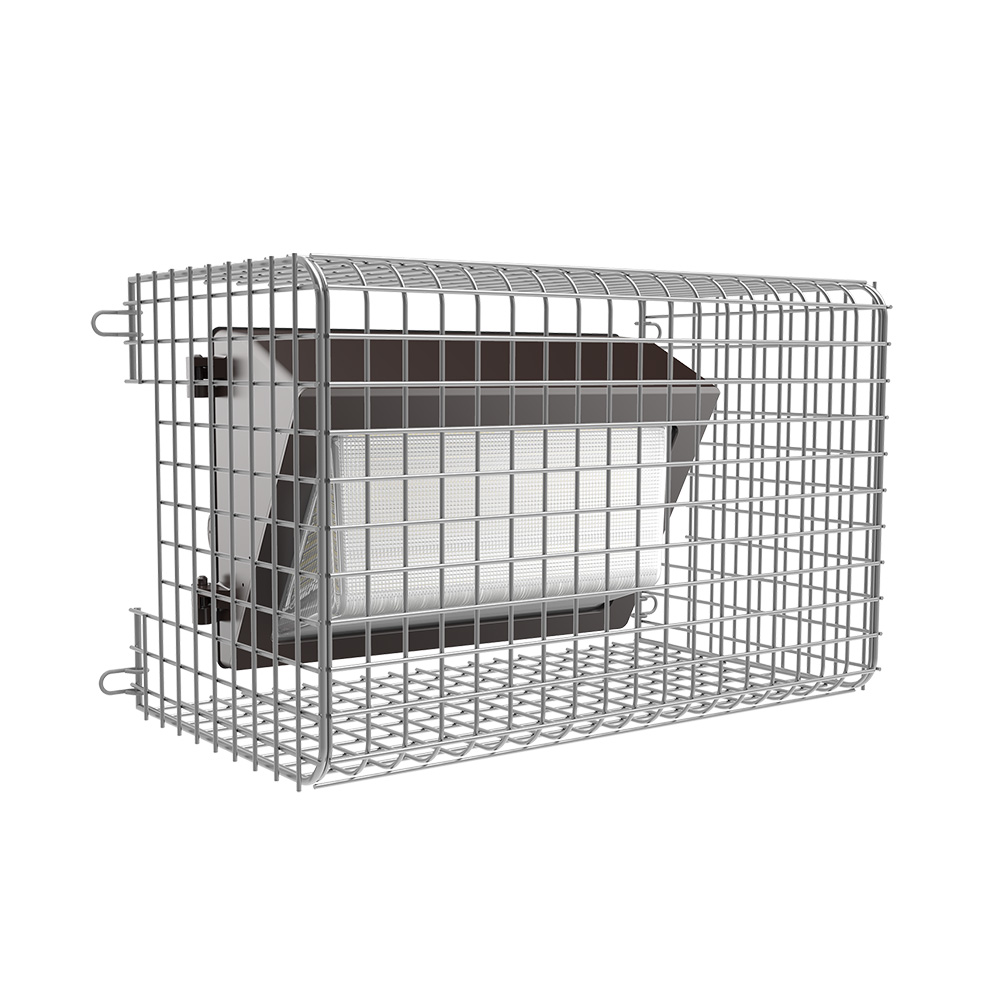

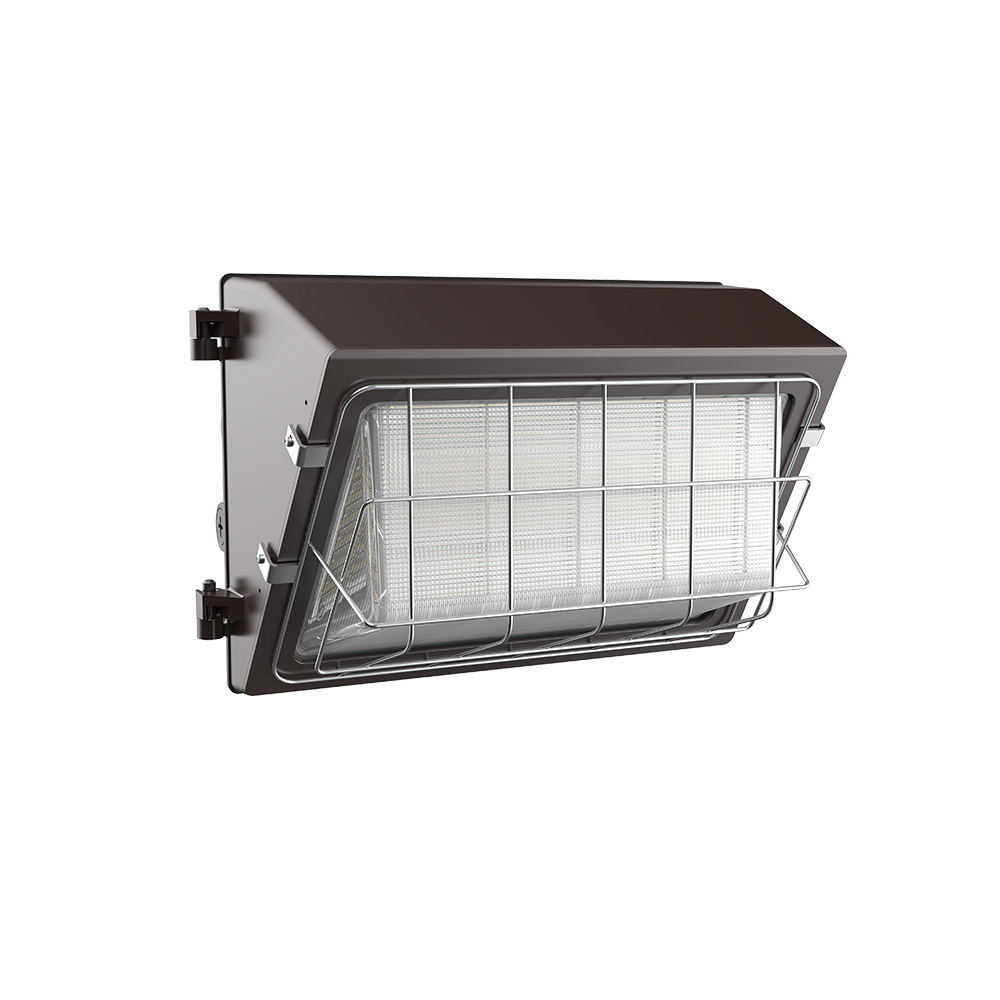

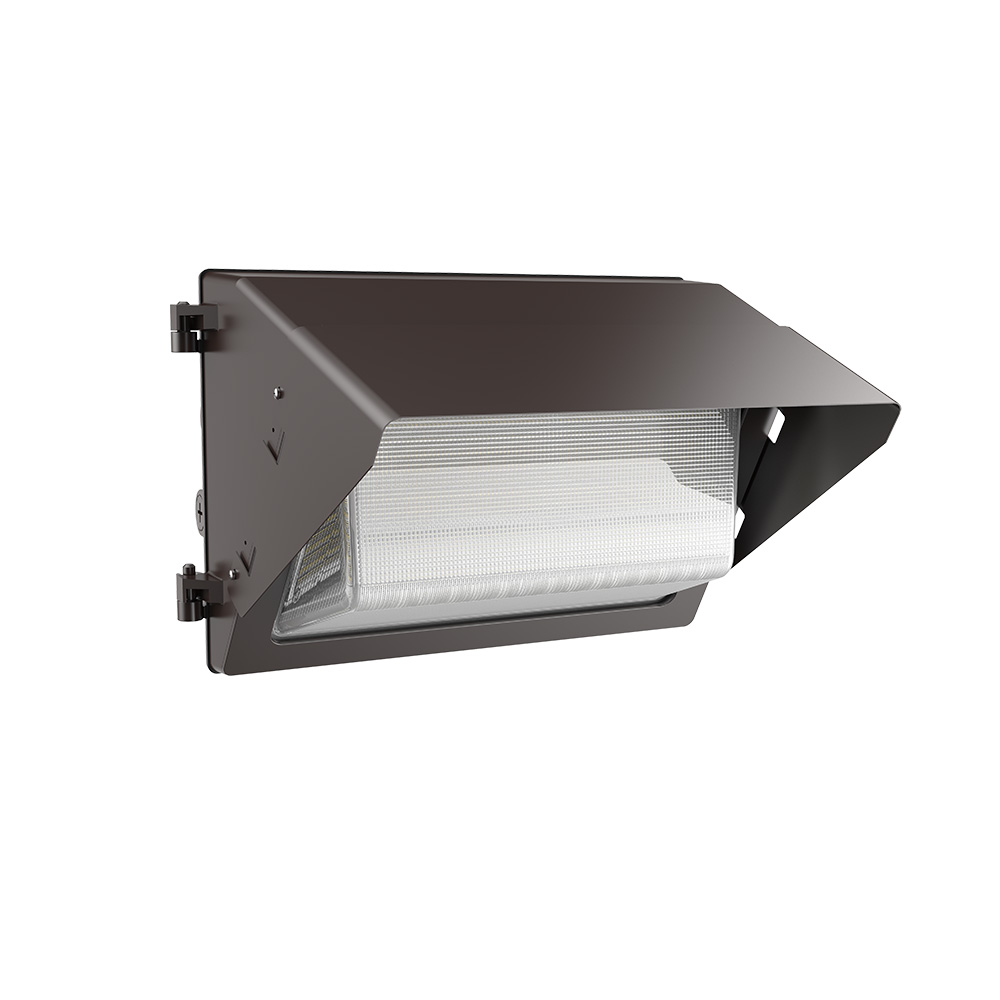

Accessories Sold Separately Visor, Wire Guard, Wire Cage
THD (%) 0.900
PF 15.0
